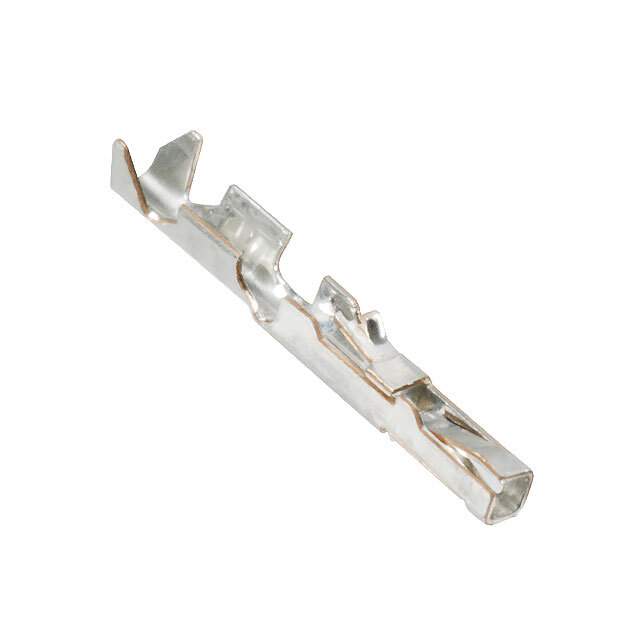

90119-2109 Real Image
Same model may have multiple batches, images only for reference.

90119-2109

Part No 90119-2109
Manufacturer Molex, LLC
Catalog Terminals
Description Splice Terminal 17-23AWG 2.54mm 4.06mm Automotive T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, Crimp, PCB, Signal
Contact Material Bronze
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin SG
Current Rating 3 A
Depth 2.1 mm
Gender Female
Halogen Free Low Halogen
Height 1.9 mm
Housing Color Black
Housing Material Polyester
Insulation Non-Insulated
Lead Free Yes
Length 15.65 mm
Max Current Rating 3 A
Maximum Operating Temperature 125 °C
Max Voltage Rating (AC) 550 V
Min Operating Temperature -55 °C
Mount Cable, Through Hole
Number of Contacts 8
Number of Rows 2
Orientation Straight
Packaging Bulk
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Shielding Unshielded
Termination Crimp
Wire/Cable Gauge 24 AWG
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 24 AWG
Win Source Part Number 1017501-90119-2109
Categories Terminals
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 90119-2109 CAD Model

Description

The Molex 1017501-90119-2109 is a crimp connector for PCB signal.

  • Type: Crimp Connector
  • Application: PCB Signal
  • Contacts: 8
  • Contact Material: Bronze
  • Contact Plating: Tin
  • Current Rating: 3A
  • Packaging: Bulk
  • Halogen Content: Low
  • RoHS: Compliant
  • Temperature Range: -55°C to 125°C
  • Voltage Rating: 550V AC
  • Wire/Cable Gauge: 24-22 AWG
