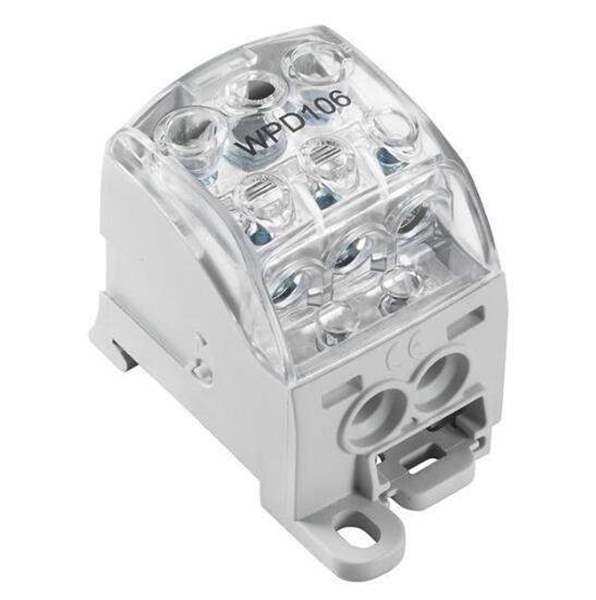

1562210000Weidmüller
Same model may have multiple batches, images only for reference.

1562210000

Part No 1562210000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description WPD 106 1X70/2X25+3X16 GY
Datasheet
1562210000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Power Distribution
Series W
Package Bulk
Product Status Active
Type Power Distribution Block
Number of Poles 1
Line Side Connections Per Pole 1
Load Side Connections Per Pole 5
Line Side Connection Type Screw Connection
Load Side Connection Type Screw Connection
Voltage - Rated 1000 V
Win Source Part Number WS1206067-1562210000
Ultra Librarian 3D Model Ultra Librarian 1562210000 CAD Model

Description

Our WPD 1XX distribution blocks are used in all situations where power is supplied and distributed. Their user-friendly design creates a better overview and enables Rapid, efficient implementation of space-saving power distribution.
