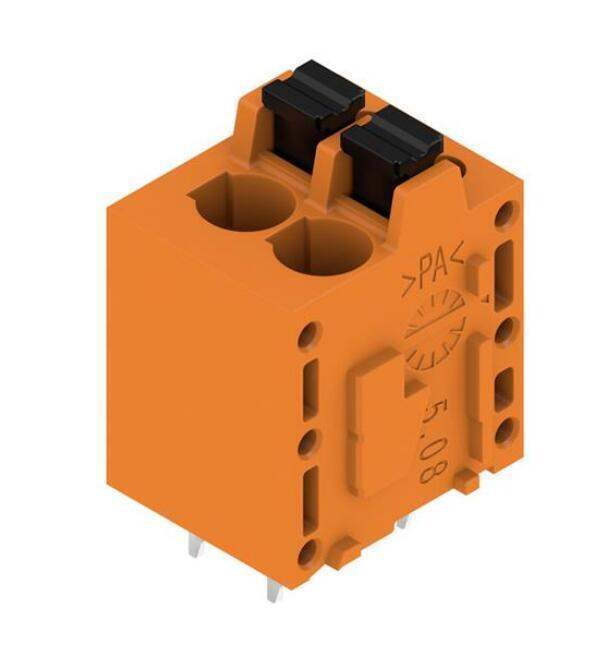

1331080000Weidmüller
Same model may have multiple batches, images only for reference.

1331080000

Part No 1331080000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description LMF 5.08/02/180 3.5SN OR BX
Datasheet
1331080000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Wire to Board
Series Omnimate LMF
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 2
Pitch 0.200" (5.08mm)
Mating Orientation Vertical with Board
Mounting Type Through Hole
Features Interlocking (Side)
Win Source Part Number WS1205885-1331080000
Ultra Librarian 3D Model Ultra Librarian 1331080000 CAD Model

Description

The new LMF allows us to meet the current market requirements for a PCB terminal with PUSH IN connection system for wire cross-sections up to 2.5 mm2
• PUSH IN connection system
• LMF with pusher for opening the terminal point
• LMFS without pusher, the terminal point is opened with a screwdriver
• Integrated test point
• 90° and 180° wire outlet direction
