Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Display Type AMOLED
Configuration Display Matrix
Operating Supply Current 1.5mA
Supply Voltage - Operating 2.7 V to 4.6 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 12-LLGA (3x3)
Win Source Part Number 003803-NCP5810MUTXG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NCP5810MUTXG CAD Model

Description

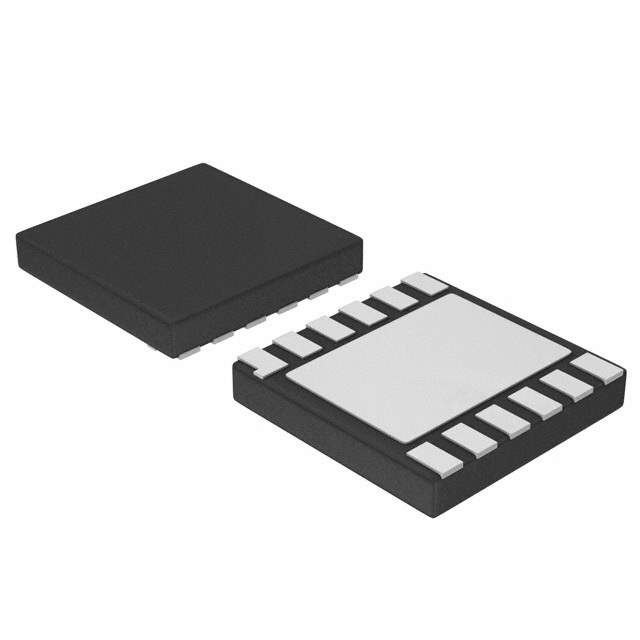

ON Semiconductor NCP5810MUTXG: High-Efficiency Boost Converter

The NCP5810MUTXG is a state-of-the-art boost converter integrated circuit designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This high-performance component is engineered to provide a compact and efficient power management solution for a wide range of electronic applications, especially those requiring a small footprint and minimal power loss.

The NCP5810MUTXG operates as a fixed-frequency, pulse-width modulation (PWM) boost converter, which is capable of stepping up low input voltages to a higher output voltage, ensuring consistent power delivery for devices that need a stable energy source. The device is particularly suitable for portable electronics, where it can efficiently boost battery voltage to meet the power requirements of various subsystems.

Featuring a 2.7V to 5.5V input voltage range, this versatile IC can accommodate the power levels of most single-cell lithium-ion batteries, making it an ideal choice for mobile phones, digital cameras, and other handheld devices. Its high switching frequency of up to 2MHz allows for the use of small, low-profile inductors and capacitors, thereby reducing the overall solution size and saving valuable board space.

The NCP5810MUTXG also boasts an impressive array of protective features to ensure the longevity and reliability of the end product. These include under-voltage lockout (UVLO), over-temperature protection, and a built-in soft-start function to minimize inrush current during startup. Additionally, the device integrates over-current and short-circuit protection, safeguarding the system against potential damage from unexpected operating conditions.

With its compact, lead-free, halogen-free 6-pin 1.2mm x 1.6mm x 0.6mm UDFN package, the NCP5810MUTXG is designed with modern environmental and space-saving considerations in mind. This makes it not only a high-performance choice for designers but also a responsible one that aligns with contemporary green manufacturing standards.

In summary, the NCP5810MUTXG from ON Semiconductor is an advanced boost converter that offers a combination of high efficiency, compact size, and robust protection features. It is an excellent power management solution for designers looking to enhance the performance and reliability of their portable and space-constrained electronic devices.
