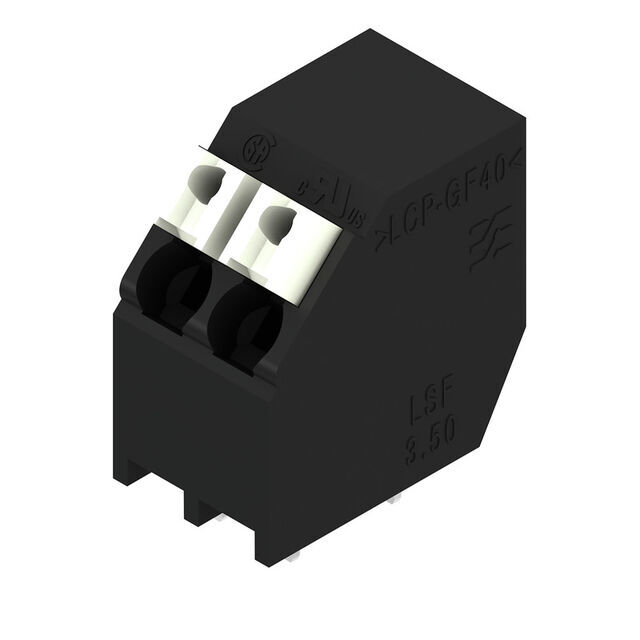

1091620000 Weidmuller – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

1091620000

Part No 1091620000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description 2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Weidmüller
Series Omnimate LSF-SMT
Packaging Box
Number of Levels 1
Positions Per Level 2
Pitch 0.138" (3.50mm)
Mating Orientation 45° (135°) Angle with Board
Current 12 A
Voltage 300 V
Wire Gauge 14-28 AWG
Mounting Type Through Hole
Wire Termination Screwless - Push Button Clamp
Features Interlocking (Side)
Color Black
Temperature Range - Operating -50°C ~ 120°C
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Material - Plating Copper Alloy - Tin Plated
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1480682-1091620000
Ultra Librarian 3D Model Ultra Librarian 1091620000 CAD Model
