1221310000

Part No 1221310000
Manufacturer Weidmuller
Catalog Box Components

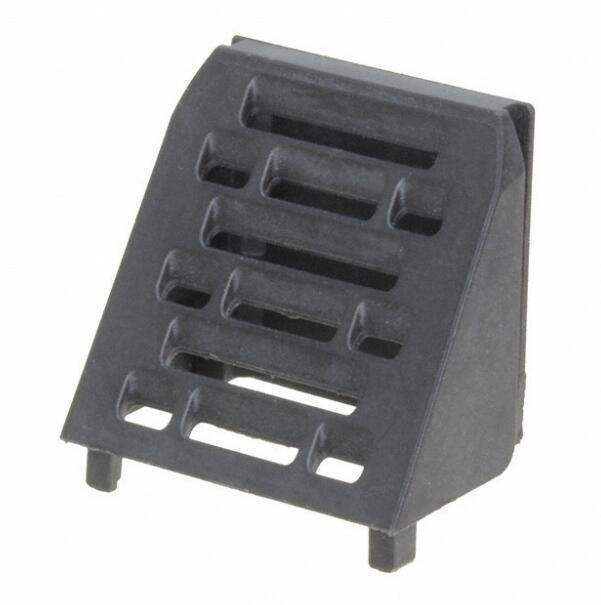

Description CH20M AD SHL 5.00/04 BK
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1205822-1221310000
Win Source Part Number Cross
Manufacturer Weidmüller
Category Boxes, Enclosures, Racks Box Components
Series Omnimate
Package Bulk
Product Status Active
Type Cover, Lid
For Use With/Related Products CH20M Housing System
Size / Dimension 0.575" L x 0.886" W x 0.933" H (14.60mm x 22.50mm x 23.70mm)
Color Black
Material Plastic, Polyamide
Ultra Librarian 3D Model Ultra Librarian 1221310000 CAD Model

Description

Innovative function electronics require intelligent "packages" in order to integrate perfectly in the system environment. The ongoing development and consistent expansion of the Weidmüller electronics housing portfolio provides a secure platform for future electronics applications whatever the design or intended use. CAD data for PCBs is provided for all enclosures. Screw and tension clamp terminals are available for all connections. The consistent synergy between design, connection system and functionality lays the perfect foundation stone for electronics systems designed in line with market and application requirements. Function, shape and manufacturing quality combine into a single logical unit that provides maximum reliability and operating comfort for the user.
