The TYN16X-600CTNQ is a high-performance Silicon Controlled Rectifier (SCR) from WeEn Semiconductors, designed for applications requiring robust and reliable AC power control. This SCR is part of the TYN16X series, known for its high surge current capability and excellent thermal performance, making it suitable for demanding industrial environments.

Applications

• AC switches: Used for controlling AC power to various loads.
• Motor control circuits: Found in applications requiring phase control of AC motors.
• Overvoltage protection: Can be used in crowbar circuits for protecting sensitive electronic equipment.
• Solid-state relays: Acts as a switching element in solid-state relays.
• Lighting control: Dimming and switching of lighting systems.

Features

• High surge current capability (ITSM = 250A): Provides robustness against transient current events.
• High blocking voltage (VDRM/VRRM = 600V): Ensures reliable operation in high voltage environments.
• High on-state current (IT(RMS) = 16 A): Capable of handling significant continuous current.
• Planar passivated for voltage ruggedness and reliability: Enhances the device's ability to withstand voltage stresses.
• High static dV/dt capability: Prevents false triggering due to rapid voltage changes.
• UL certified (File ref: E81734): Complies with Underwriters Laboratories safety standards.

Benefits

• Improved reliability: The high surge current capability and voltage ruggedness contribute to a more reliable system.
• Efficient power control: The SCR allows for precise control of AC power, improving energy efficiency.
• Simplified circuit design: Integrated features reduce the need for external components, simplifying the overall design.
• Enhanced safety: The UL certification ensures compliance with safety standards, reducing the risk of electrical hazards.
• Robust performance in harsh environments: The SCR is designed to operate reliably in demanding industrial conditions.

Additional Details

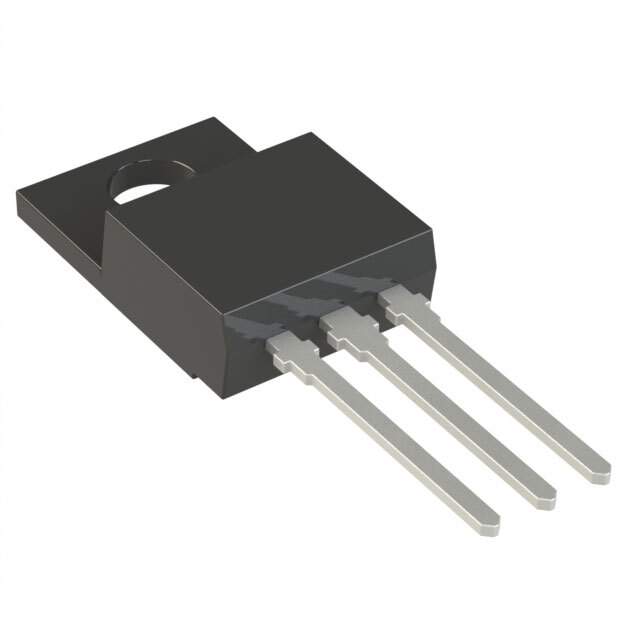

The TYN16X-600CTNQ is housed in a TO-220AB package, which provides good thermal dissipation. Its gate trigger current (IGT) is typically 25 mA, and its holding current (IH) is 15 mA. The operating junction temperature range is -40°C to +125°C. This SCR is designed for phase control applications where precise and reliable control of AC power is required. It's a popular choice among design engineers due to its robust performance and compliance with industry safety standards.
