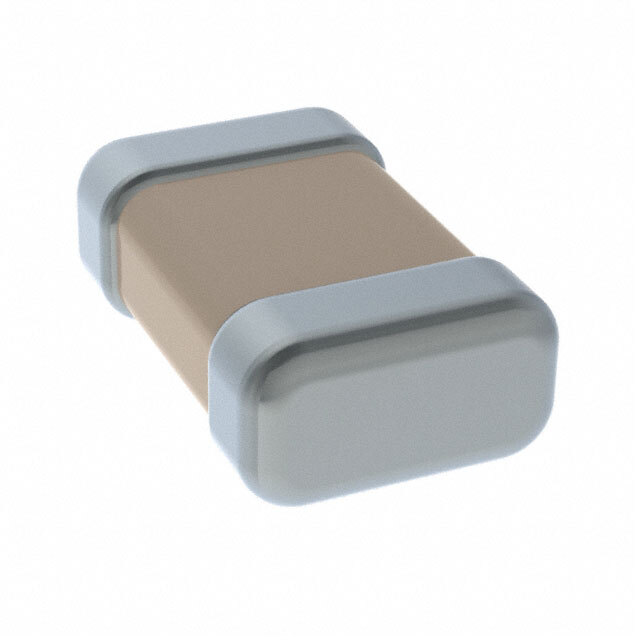

Same model may have multiple batches, images only for reference.
0805N560J251CT Walsin Technology Corporation
Same model may have multiple batches, images only for reference.

0805N560J251CT

Part No 0805N560J251CT
Manufacturer Walsin Technology Corporation
Catalog Ceramic Capacitors
Description MLCC 56PF 250V NPO 0805 / 56 pF ±5% 250V Ceramic Capacitor C0G, NP0 0805 (2012 Metric)
Datasheet
0805N560J251CT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Walsin Technology Corporation
Package Tape & Reel (TR)
Capacitance 56 pF
Tolerance ±5%
Voltage - Rated 250V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications SMPS Filtering
Mounting Type Surface Mount, MLCC
Package / Case 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Thickness (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names 1292-0805N560J251CTTR
Standard Package 4,000
Win Source Part Number 1123385-0805N560J251CT
Ultra Librarian 3D Model Ultra Librarian 0805N560J251CT CAD Model

Description

The Walsin Technology Corporation 1123385-0805N560J251CT capacitor is a ceramic capacitor that features a capacitance of 56 pF and a voltage rating of 250V.

  • Application: SMPS Filtering
  • Temperature Coefficient: C0G, NP0
  • Package: Tape and Reel
  • Thickness: 0.028" (0.70mm)
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Lead Style: Surface Mount
  • Package/Case: 0805 (2012 Metric)
