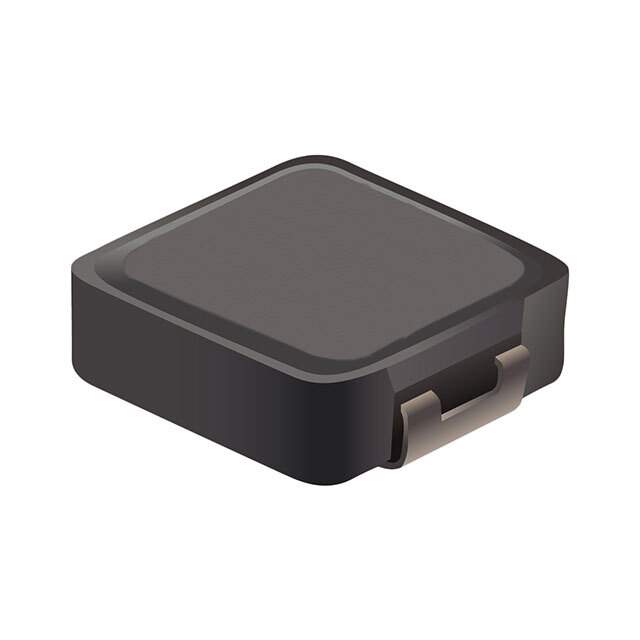

SRP1038C-R30M Real Image
Same model may have multiple batches, images only for reference.

SRP1038C-R30M

Part No SRP1038C-R30M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1038C-R30M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1038C
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 300 nH
Tolerance ±20%
Current Rating (Amps) 38 A
Current - Saturation (Isat) 70A
Shielding Shielded
DC Resistance (DCR) 1.2mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 99MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Other Names SRP1038C-R30MCT,SRP1038C-R30MDKR,SRP1038C-R30MTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274147-SRP1038C-R30M
Ultra Librarian 3D Model Ultra Librarian SRP1038C-R30M CAD Model

Description

The Bourns Inc. SRP1038C-R30M is a fixed inductor that belongs to the drum core, wirewound type category.

  • Inductance: 300nH
  • Tolerance: ±20 percent
  • DC Resistance: 1.2mOhm max
  • Current Rating: 38A
