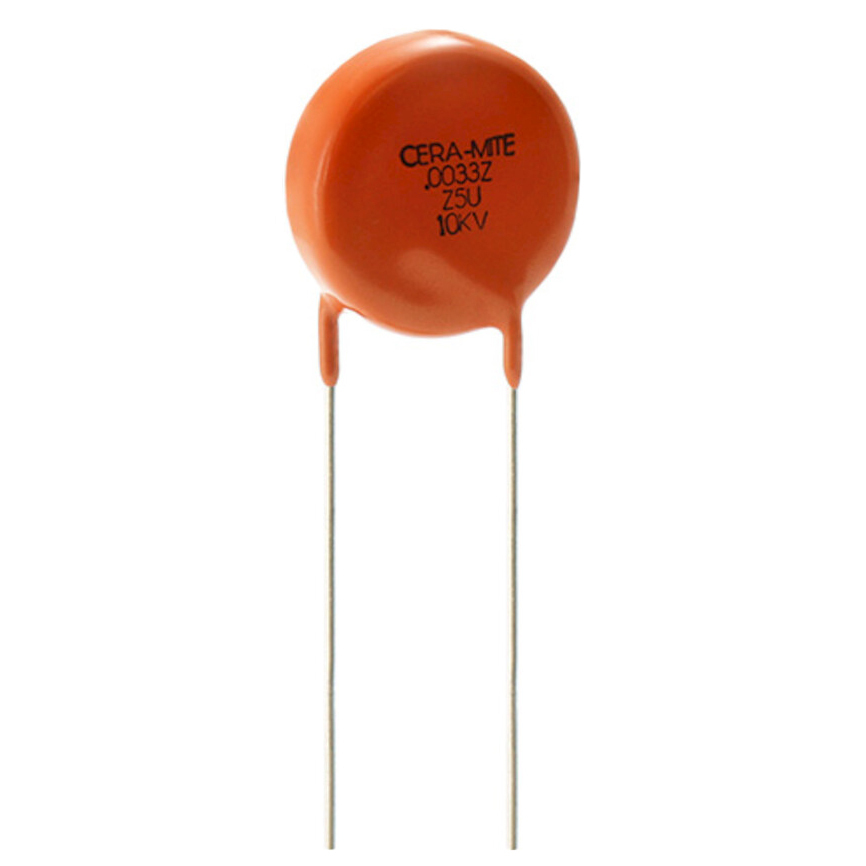

Same model may have multiple batches, images only for reference.
615R100GAD25 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

615R100GAD25

Part No 615R100GAD25
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 2500PF 10KV Z5U RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 2500 pF
Tolerance -20%, +80%
Voltage - Rated 10000V (10kV)
Temperature Coefficient Z5U
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Applications SMPS Filtering
Mounting Type Through Hole
Case / Package Radial, Disc
Size / Dimension 0.752" Dia (19.10mm)
Height - Seated (Max) 1.004" (25.50mm)
Lead Spacing 0.500" (12.70mm)
Lead Style Straight
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1516709-615R100GAD25
Ultra Librarian 3D Model Ultra Librarian 615R100GAD25 CAD Model
