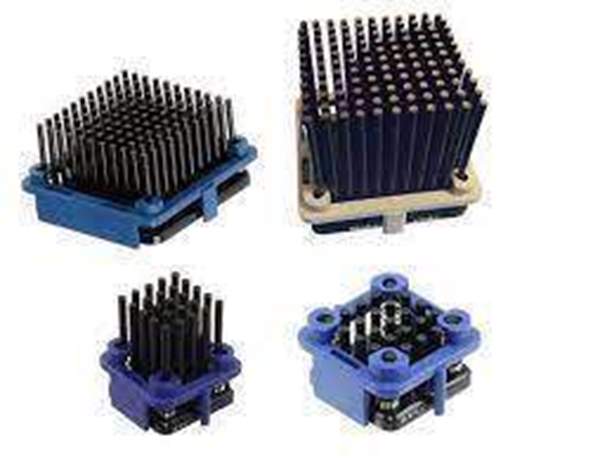

Part No 903-23-2-15-2-B-0
Manufacturer Wakefield-Vette
Catalog Thermal - Heat Sinks
Description HEAT SINK PIN FIN 23X23MM CLIP
Datasheet
903-23-2-15-2-B-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209593-903-23-2-15-2-B-0
Manufacturer Wakefield-Vette
Category Fans, Thermal Management -Thermal -Heat Sinks
Package Box
Product Status Active
Type Top Mount
Package Cooled BGA
Attachment Method Push Pin
Shape Square, Pin Fins
Length 0.906" (23.01mm)
Width 0.906" (23.01mm)
Ultra Librarian 3D Model Ultra Librarian 903-23-2-15-2-B-0 CAD Model

Description

Wakefield-Vette’s heat sink assembles onto chip set using the space that is between the PCB andthe substrate of the solder balls. The solder balls provide a minimal gap of .5mm to .7mm. Attachment feature is below a .4mm thickness. The clipping system will not interfere or damagechip. Contact area is the edge of chip.
