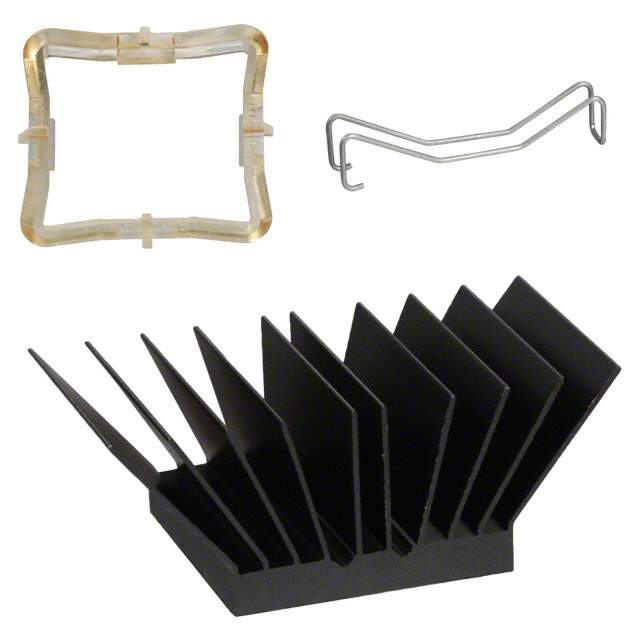

ATS-51290R-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-51290R-C1-R0

Part No ATS-51290R-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEAT SINK 29MM X 29MM X 19.5MM
Datasheet
ATS-51290R-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Status Active
Type Top Mount
Package Cooled BGA
Attachment Method Clip, Thermal Material
Shape Square, Angled Fins
Length 1.142" (29.01mm)
Width 1.142" (29.01mm)
Height Off Base (Height of Fin) 0.768" (19.50mm)
Thermal Resistance @ Forced Air Flow 3.4°C/W @ 200 LFM
Material Aluminum
Material Finish Black Anodized
Win Source Part Number 1114191-ATS-51290R-C1-R0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ATS-51290R-C1-R0 CAD Model

Description

The 1114191-ATS-51290R-C1-R0 heat sink is designed for use in thermal management applications and is manufactured by Advanced Thermal Solutions Inc.

  • Mount: Top Mount
  • Shape: Square, Angled Fins
  • Material: Aluminum
  • Package Cooled: BGA
  • Attachment Method: Clip, Thermal Material
  • Width: 1.142 inches (29.01mm)
  • Length: 1.142 inches (29.01mm)
  • Height off Base: 0.768 inches (19.50mm)
  • Thermal Resistance @ Forced Air Flow: 3.4°C/W @ 200 LFM
  • Finish: Black Anodized
