Same model may have multiple batches, images only for reference.

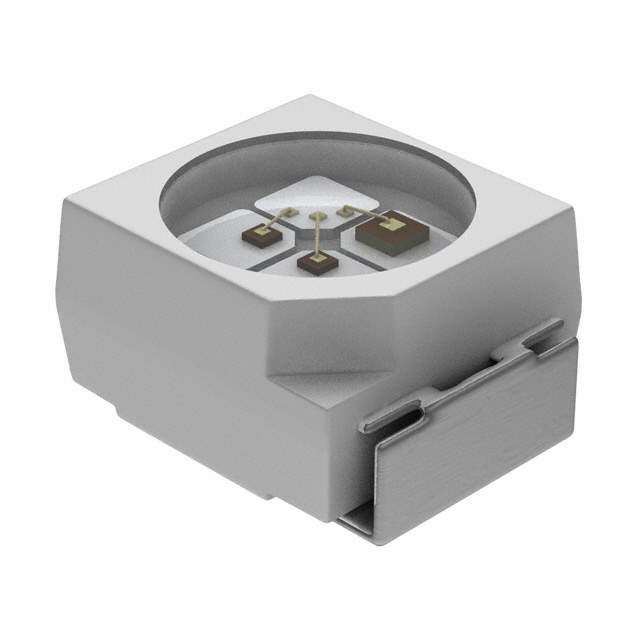

VSMG2700-GS08 Real Image
Same model may have multiple batches, images only for reference.

VSMG2700-GS08

Part No VSMG2700-GS08
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description High Speed Infrared Emitting Diode, RoHS Compliant, 830 nm, GaAlAs Double Hetero | IRED 830NM PLCC2 10MW/SR 60DEG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel
Type Infrared (IR)
Current - DC Forward (If) (Maximum) 100mA
Radiant Intensity (Ie) Min at If 6mW/sr at 100mA
Wavelength 830nm
Voltage - Forward (Vf) 1.5V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2-SMD, J-Lead
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1279887-VSMG2700-GS08
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VSMG2700-GS08 CAD Model

Description

The Vishay Semiconductor Opto Division VSMG2700-GS08 is an infrared (IR) type diode with a viewing angle of 120° and a wavelength of 830nm.

  • Mounting: SMD mounted
  • Manufacturer package: 2-SMD, J-Lead
  • Current - DC forward (If) (maximum): 100mA
  • Voltage - forward (Vf): 1.5V
  • Radiant intensity (Ie) min @ If: 6mW/sr @ 100mA
  • Operating temperature range: -40°C to 85°C
