Same model may have multiple batches, images only for reference.

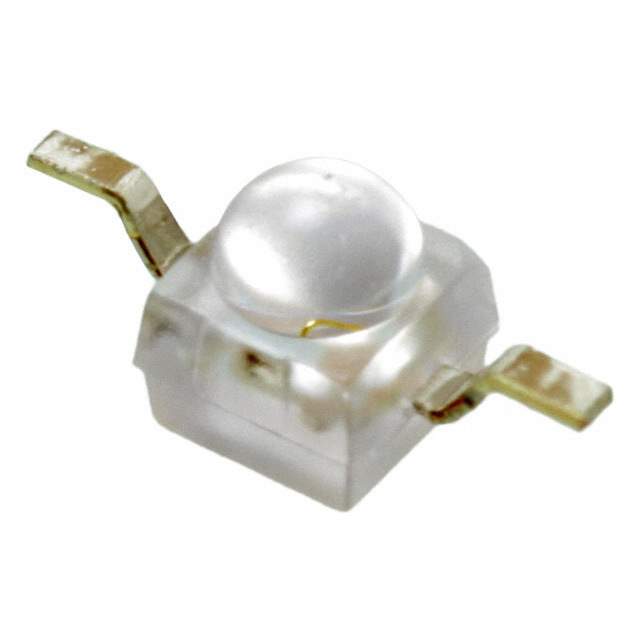

VSMB2943RGX01 Real Image
Same model may have multiple batches, images only for reference.

VSMB2943RGX01

Part No VSMB2943RGX01
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 100MA SMD
Datasheet
VSMB2943RGX01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 51 Weeks
Features Infrared (IR) Emitter 940nm 1.35V 100mA 20mW/sr @ 100mA 50° 2-SMD, Z-Bend
Manufacturer Vishay
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 2-SMD, Z-Bend
Family Name VSMB2943
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number VSMB2943RGX01DKR, VSMB2943RGX01TR, VSMB2943RGX01CT
Quantity per package 6000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844432-VSMB2943RGX01
Ultra Librarian 3D Model Ultra Librarian VSMB2943RGX01 CAD Model

Description

The Vishay VSMB2943RGX01 is an infrared (IR) emitter that is used in a variety of optoelectronic applications.

  • Wavelength: 940nm
  • Forward Voltage: 1.35V
  • Maximum Current Rating: 100mA
  • Power Dissipation: 20mW/sr @ 100mA 50°
  • Package: 2-SMD, Z-Bend
  • Mounting Type: Surface Mount
  • Family: VSMB2943
  • ECCN: EAR99
  • Manufacturer: Vishay
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package Quantity: 6000 units
  • Estimated Production Lead Time: 51 weeks
  • REACH: Unaffected
  • HTSUS: 8541.40.2000
