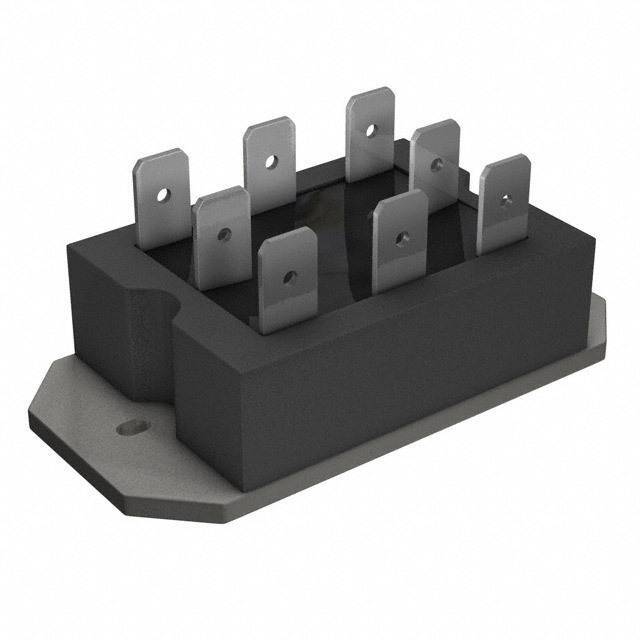

VS-P404W

Part No VS-P404W
Manufacturer Vishay
Catalog SCRs - Single - Modules
Description DIODE BRIDGE 1000V 40A PACEPK / SCR Module Diode 1000V 400A 6-Pin Case D-19
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Structure Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes 2 SCRs, 2 Diodes
Voltage - Off State 1000V
Current - On State (It (RMS)) (Maximum) 40A (DC)
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 385A, 400A
Current - Hold (Ih) (Maximum) 130mA
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Chassis Mount
Package 8-PACE-PAK
Win Source Part Number 791140-VS-P404W
Popularity Medium
Supply and Demand Status Limited
Family Name VS-P404
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VS-P404W CAD Model

Description

The VS-P404W is a single-phase bridge rectifier from Vishay Semiconductor Diodes Division that is designed for use in high-power applications.

  • Maximum Current: 40A
  • Maximum Voltage: 1000V
  • Package: 8-PACE-PAK
  • Forward Voltage Drop: (Not Specified)
  • Surge Current: (Not Specified)
