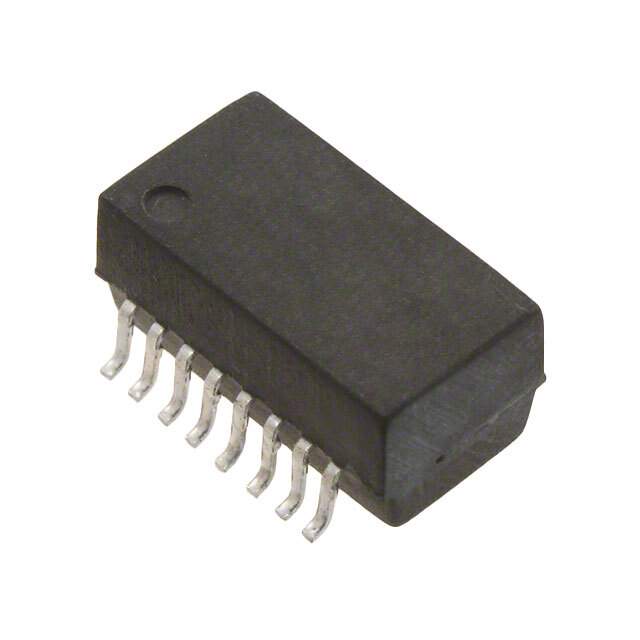

The PE-65861NLT is a Gigabit Ethernet transformer from Pulse Electronics, crucial for signal isolation and impedance matching in network interfaces. Designed to comply with IEEE 802.3 standards, it supports 10/100/1000Base-T Ethernet speeds, making it suitable for various networking applications. The 'NLT' suffix typically indicates a lead-free, RoHS-compliant component with a specific termination style (usually tape and reel for automated assembly).

Applications

• Gigabit Ethernet network interfaces
• Network Interface Cards (NICs)
• Routers and switches
• Motherboards
• Industrial Ethernet applications

Features

• Supports 10/100/1000Base-T Ethernet
• Complies with IEEE 802.3 standards
• Provides galvanic isolation
• Low profile design
• RoHS compliant (lead-free)
• Tape and reel packaging for automated assembly

Benefits

• Enhances network reliability through signal isolation and impedance matching
• Protects electronic components from voltage surges
• Ensures compliance with environmental regulations
• Enables compact designs for networking equipment
• Reduces manufacturing costs through automated assembly
• Optimized signal transmission characteristics for Gigabit Ethernet

Additional Details

The PE-65861NLT transformer's key specifications include inductance, leakage inductance, interwinding capacitance, turns ratio, insertion loss, return loss, isolation voltage, and common-mode rejection ratio. These parameters are meticulously controlled during manufacturing to guarantee consistent performance and reliability in demanding networking environments. The transformer's construction is optimized for surface mount technology (SMT), facilitating high-volume production. It is designed to minimize electromagnetic interference (EMI) and ensure signal integrity. The component's operating temperature range is typically specified for commercial or industrial applications. This transformer is a critical component in Gigabit Ethernet systems, ensuring robust and reliable network performance.
