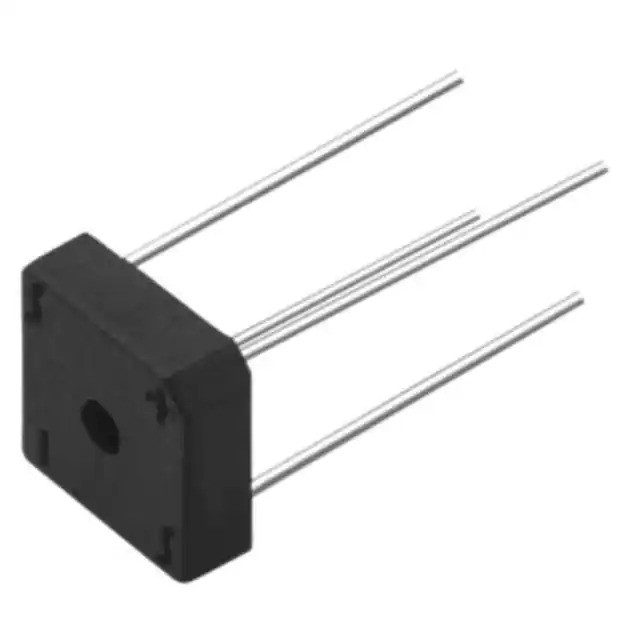

VS-KBPC804PBF Vishay
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Series VS-KBPC8
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 8 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 3 A
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-Square, D-72
Supplier Device Package D-72
Base Product Number KBPC804
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368083-VS-KBPC804PBF
Ultra Librarian 3D Model Ultra Librarian VS-KBPC804PBF CAD Model

Description

The VS-KBPC804PBF is an active bridge rectifier diode manufactured by Vishay General Semiconductor - Diodes Division.

  • Series: VS-KBPC8
  • Base Product Number: KBPC804
  • Average Rectified Current: 8A
  • Maximum Forward Voltage: 1V @ 3A
  • Operating Temperature Range: -55°C to 150°C
  • Package: 4-square, D-72
  • Mounting Type: Through-Hole
  • Maximum Peak Reverse Voltage: 400V
  • Reverse Leakage Current: 10μA @ 400V
  • ECCN: EAR99
