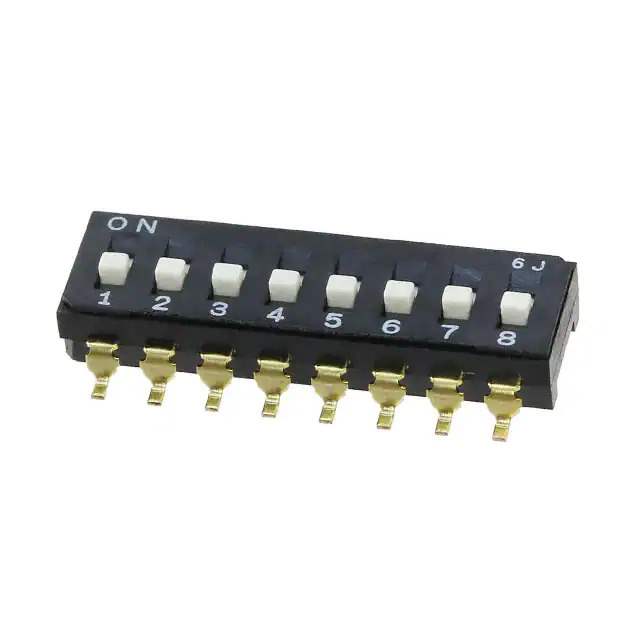

CFS-0802MB Real Image
Same model may have multiple batches, images only for reference.

CFS-0802MB

Part No CFS-0802MB
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH DIP SPST 100MA 6V / Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
Datasheet
CFS-0802MB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Copal Electronics
Series CFS
Package Tube
Product Status Active
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.858" (21.80mm)
Electrical Life 1,000 Cycles
Base Product Number CFS-0802
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 866343-CFS-0802MB
Ultra Librarian 3D Model Ultra Librarian CFS-0802MB CAD Model

Description

The CFS-0802MB is an 8-position DIP switch from Nidec Copal Electronics.

  • Manufacturer: Nidec Copal Electronics
  • Product: CFS-0802MB
  • Type: 8-Position DIP Switch
  • Series: CFS
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Package: Tube
  • Contact Material: Copper Alloy
  • Voltage Rating: 6VDC
  • Height Above Board: 0.169" (4.30mm)
  • Length: 0.858" (21.80mm)
  • Circuit Configuration: SPST
  • Actuator Type: Slide (standard)
  • Electrical Life: 1,000 cycles
  • Current Rating: 100mA
  • Operating Temperature Range: -40°C to 85°C
