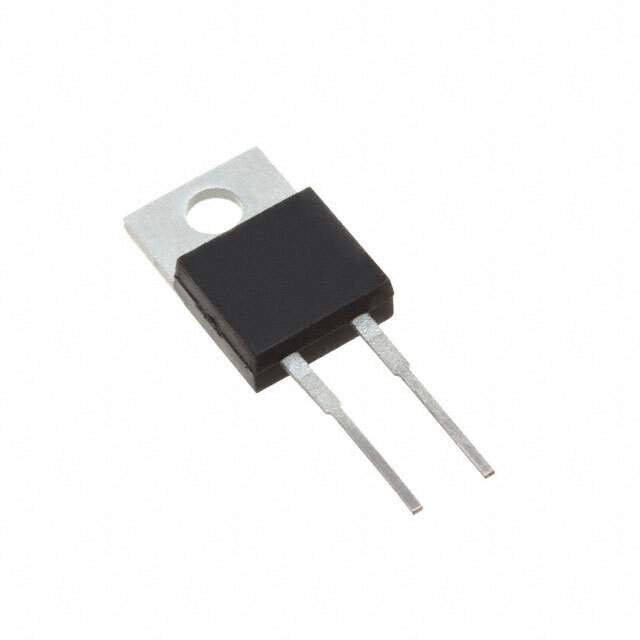

VS-HFA16TB120-M3 Real Image
Same model may have multiple batches, images only for reference.

VS-HFA16TB120-M3

Part No VS-HFA16TB120-M3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE FRED 1.2KV 16A TO220AC / Diode Standard 1200 V 16A (DC) Through Hole TO-220AC
Datasheet
VS-HFA16TB120-M3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Series HEXFRED®
Package Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 16A (DC)
Voltage - Forward (Vf) (Max) @ If 3.93 V @ 32 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 135 ns
Current - Reverse Leakage @ Vr 20 µA @ 1200 V
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220AC
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number HFA16
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names VS-HFA16TB120-M3GI,VS-HFA16TB120-M3-ND
Standard Package 50
Win Source Part Number 1062634-VS-HFA16TB120-M3
Ultra Librarian 3D Model Ultra Librarian VS-HFA16TB120-M3 CAD Model

Description

The HEXFRED series diode is a fast recovery diode with a maximum DC reverse voltage of 1200 V and an average rectified current of 16 A.

  • Maximum DC Reverse Voltage: 1200 V
  • Average Rectified Current: 16 A
  • Forward Voltage: 3.93 V @ 32 A
  • Reverse Recovery Time: 135 ns
  • Current Leakage: 20 µA
  • Mounting: through a hole
  • Package: TO-220-2
  • Package Contains: 50 diodes
  • Suitable for: rectifiers and inverters
  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • Alternative Parts: VS-HFA16TB120-M3GI and VS-HFA16TB120-M3-ND
