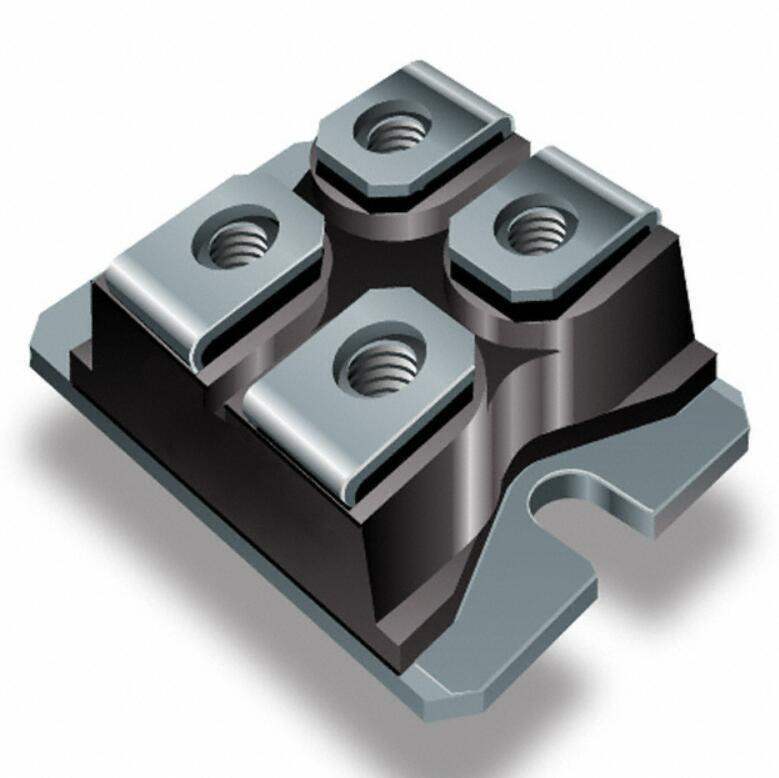

Same model may have multiple batches, images only for reference.
VS-GT80DA120UVishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.

VS-GT80DA120U

Part No VS-GT80DA120U
Manufacturer Vishay
Catalog TRANSISTORS
Description IGBT MOD 1200V 139A 658W SOT227
Datasheet
VS-GT80DA120U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202371-VS-GT80DA120U
Win Source Part Number Cross
Manufacturer Vishay General Semiconductor - Diodes Division
Category Discrete Semiconductor Products Transistors IGBTs IGBT Modules
Series HEXFRED®
Package Bulk
Product Status Active
IGBT Type Trench
Configuration Single
Current - Collector (Ic) (Max) 139 A
Power - Max 658 W
Ultra Librarian 3D Model Ultra Librarian VS-GT80DA120U CAD Model

Description

The HEXFRED IGBT module by Vishay General Semiconductor - Diodes Division is a high-performance electronic component designed for various applications.

  • Maximum Current Collector: 139 A
  • Configuration: Single
  • Technology: Trench IGBT
  • Power Rating: 658 W
  • Package: Bulk
  • Product Status: Active
