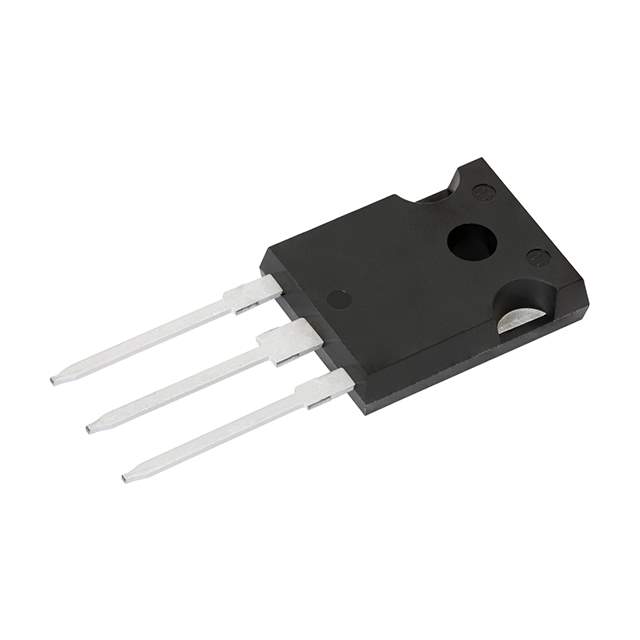

VS-C5PX3012L-N3 Real Image
Same model may have multiple batches, images only for reference.

VS-C5PX3012L-N3

Part No VS-C5PX3012L-N3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description 30A, 1200V, "X" SERIES FRED PT I / Diode Array 1200 V Through Hole TO-247-3
Datasheet
VS-C5PX3012L-N3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Vishay General Semiconductor - Diodes Division
Series FRED Pt®
Package Tube
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Voltage - Forward (Vf) (Max) @ If 3.3 V @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 96 ns
Current - Reverse Leakage @ Vr 50 µA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD
Base Product Number C5PX3012
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1350837-VS-C5PX3012L-N3
Ultra Librarian 3D Model Ultra Librarian VS-C5PX3012L-N3 CAD Model

Description

The VS-C5PX3012L-N3 is a diode array from Vishay General Semiconductor - Diodes Division.

  • Series: FRED Pt
  • Package: Tube
  • Standard Package: 25 units
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8541.10.0080
  • Application: Rectifier
