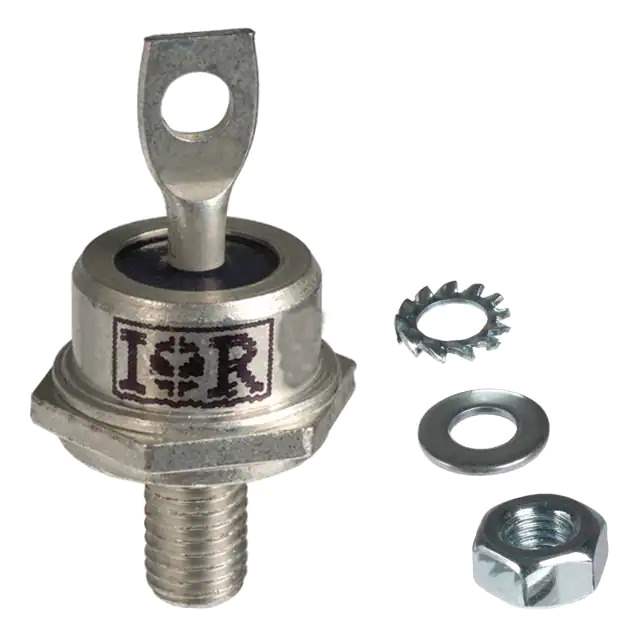

VS-85HFR100 Real Image
Same model may have multiple batches, images only for reference.

VS-85HFR100

Part No VS-85HFR100
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 85A DO203AB / Diode 1000 V 85A Chassis, Stud Mount DO-203AB (DO-5)
Datasheet
VS-85HFR100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay
Package Bulk
Product Status Active
Technology Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 85A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 267 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 9 mA @ 1000 V
Mounting Type Chassis, Stud Mount
Package / Case DO-203AB, DO-5, Stud
Supplier Device Package DO-203AB (DO-5)
Operating Temperature - Junction -65°C ~ 180°C
Base Product Number 85HFR100
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 847616-VS-85HFR100
Ultra Librarian 3D Model Ultra Librarian VS-85HFR100 CAD Model

Description

The 847616-VS-85HFR100 is a single diode rectifier from Vishay.

  • Category: Discrete Semiconductor Products
  • Diode Configuration: Single
  • Maximum DC Reverse Voltage (Vr): 1000V
  • Average Rectified Current (Io): 85A
  • Forward Voltage (Vf): 1.2V @ 267A
  • Reverse Leakage Current (Ir): 9mA @ 1000V
  • Operating Temperature: -65°C to 180°C
  • Mounting Type: Chassis, Stud
  • Package: DO-203AB
  • Product Status: Active
