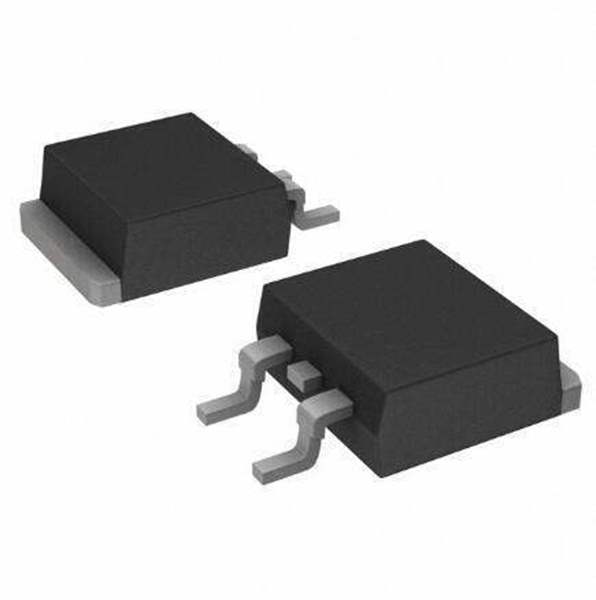

VS-25TTS08S-M3

Part No VS-25TTS08S-M3
Manufacturer Vishay
Catalog TRANSISTORS
Description SCR 800V 25A TO263AB
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Vishay General Semiconductor - Diodes Division
Manufacturer Discrete Semiconductor Products Thyristors SCRs
Category Tube
Part Status Active
Voltage - Off State 800 V
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 45 mA
Voltage - On State (Vtm) (Max) 1.25 V
Current - On State (It (AV)) (Max) 16 A
SCR Type Standard Recovery
Operating Temperature -40°C ~ 125°C
Win Source Part Number WS1305759-VS-25TTS08S-M3
Ultra Librarian 3D Model Ultra Librarian VS-25TTS08S-M3 CAD Model

Description

The VS-25TTS...S-M3 high voltage series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 125 °C junction temperature.
