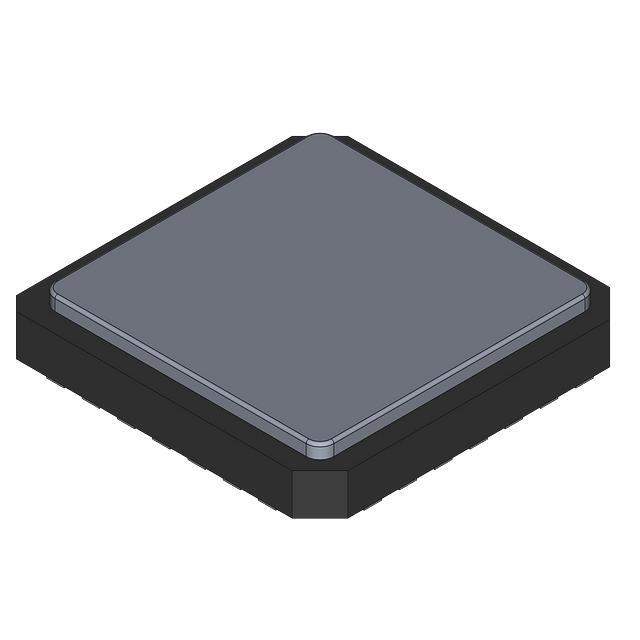

SGTL5000XNAA3R2 Freescale Semiconductor - NXP SGTL5000XNAA3R2 Real Image SGTL5000XNAA3R2 label picture SGTL5000XNAA3R2 label picture 2 SGTL5000XNAA3R2 real image5358 SGTL5000XNAA3R2 real image5359 SGTL5000XNAA3R2 real image5360 SGTL5000XNAA3R2 Real Image1 SGTL5000XNAA3R2 Real Image2 SGTL5000XNAA3R2 Real Image3 SGTL5000XNAA3R2 Real Image4 SGTL5000XNAA3R2 Real Image5 SGTL5000XNAA3R2 Real Image6 SGTL5000XNAA3R2 Real Image7 SGTL5000XNAA3R2 Real Image8
Same model may have multiple batches, images only for reference.
SGTL5000XNAA3R2 Freescale Semiconductor - NXP SGTL5000XNAA3R2 Real Image SGTL5000XNAA3R2 label picture SGTL5000XNAA3R2 label picture 2 SGTL5000XNAA3R2 real image5358 SGTL5000XNAA3R2 real image5359 SGTL5000XNAA3R2 real image5360 SGTL5000XNAA3R2 Real Image1 SGTL5000XNAA3R2 Real Image2 SGTL5000XNAA3R2 Real Image3 SGTL5000XNAA3R2 Real Image4 SGTL5000XNAA3R2 Real Image5 SGTL5000XNAA3R2 Real Image6 SGTL5000XNAA3R2 Real Image7 SGTL5000XNAA3R2 Real Image8
SGTL5000XNAA3R2 Freescale Semiconductor - NXP SGTL5000XNAA3R2 Real Image SGTL5000XNAA3R2 label picture SGTL5000XNAA3R2 label picture 2 SGTL5000XNAA3R2 real image5358 SGTL5000XNAA3R2 real image5359 SGTL5000XNAA3R2 real image5360 SGTL5000XNAA3R2 Real Image1 SGTL5000XNAA3R2 Real Image2 SGTL5000XNAA3R2 Real Image3 SGTL5000XNAA3R2 Real Image4 SGTL5000XNAA3R2 Real Image5 SGTL5000XNAA3R2 Real Image6 SGTL5000XNAA3R2 Real Image7 SGTL5000XNAA3R2 Real Image8
Same model may have multiple batches, images only for reference.

SGTL5000XNAA3R2

Part No SGTL5000XNAA3R2
Manufacturer Freescale Semiconductor - NXP
Catalog Interface - CODECs
Description IC AUDIO CODEC STEREO 32-QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Reel - TR
Status Active
Type Stereo Audio
Data Interface I2C, Serial, SPI
Number of ADCs / DACs 1 / 1
Sigma Delta No
S/N Ratio, ADCs / DACs (db) Typ 90 / 100
Analog Supply Voltage 1.62 V to 3.6 V
Digital Supply Voltage 1.1 V to 2 V, 1.62 V to 3.6 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 32-QFN Exposed Pad (5x5)
Win Source Part Number 028316-SGTL5000XNAA3R2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name SGTL5000XNAA3
Introduction Date February 17, 2009
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian SGTL5000XNAA3R2 CAD Model

Description

The SGTL5000XNAA3R2 is a stereo audio codec manufactured by NXP.

  • Supply and Demand Status: sufficient
  • Common Use: consumer audio devices such as smartphones, tablets, and laptops
  • Data Interfaces: I2C, serial, and SPI
  • Signal-to-Noise Ratio: 90dB for ADCs and 100dB for DACs
  • Operating Temperature Range: -40°C to 85°C
  • Package: 32-QFN exposed pad
  • Analog Supply Voltage: 1.62V to 3.6V
  • Digital Supply Voltage: 1.1V to 2V
