Same model may have multiple batches, images only for reference.

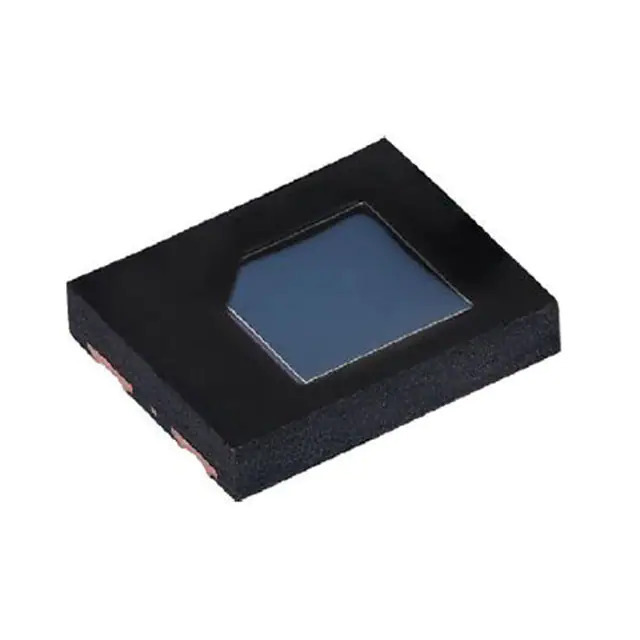

VEMD5080X01 Vishay
Same model may have multiple batches, images only for reference.

VEMD5080X01

Part No VEMD5080X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 350 TO 1100 NM
Datasheet
VEMD5080X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Vishay Semiconductor Opto Division
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Wavelength 950nm
Color - Enhanced -
Spectral Range 350nm ~ 1100nm
Diode Type PIN
Responsivity @ nm -
Response Time 70ns
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Dark (Typ) -
Active Area 7.5mm²
Viewing Angle 65°
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead Exposed Pad
Base Product Number VEMD5080
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1372038-VEMD5080X01
Ultra Librarian 3D Model Ultra Librarian VEMD5080X01 CAD Model

Description

The 1372038-VEMD5080X01 is an optical sensor photodiode from Vishay Semiconductor Opto Division.

  • Temperature Range: -40°C to 110°C
  • Voltage Rating: 20V
  • Response Time: 70ns
  • Viewing Angle: 65°
  • Wavelength: 950nm
  • Spectral Range: 350nm to 1100nm
  • Package: 4-SMD, no lead exposed pad
  • Mounting Type: Surface Mount
  • ECCN: EAR99
  • MSL Level: 4 (72 hours)
