Same model may have multiple batches, images only for reference.

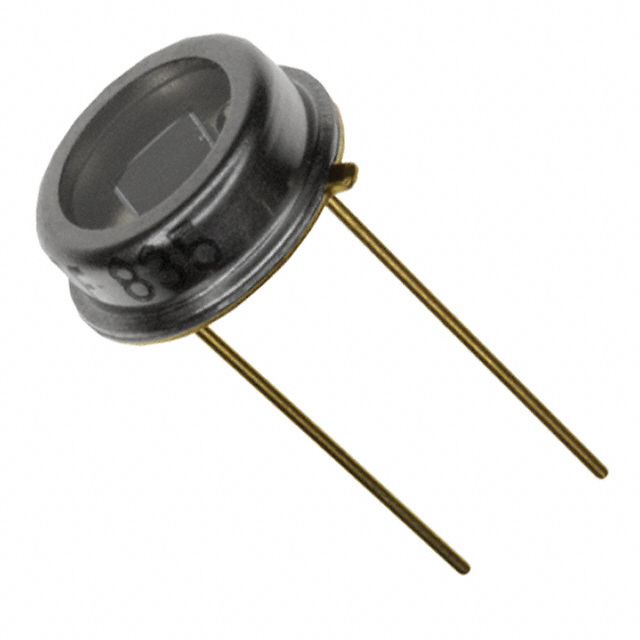

BPW20RF Vishay
Same model may have multiple batches, images only for reference.

BPW20RF

Part No BPW20RF
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description Silicon PN Photodiode
Datasheet
BPW20RF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Bulk
Wavelength 920nm
Spectral Range 550nm ~ 1040nm
Diode Type PIN
Voltage - DC Reverse (Vr) (Maximum) 10V
Current - Dark (Typ) 2nA
Active Area 7.5mm²
Viewing Angle 100°
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package Radial, Lensed Metal Can, 2 Lead
Win Source Part Number 1153954-BPW20RF
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name BPW20RF
Introduction Date March 20, 2002
ECCN 3A001.a.2.c
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BPW20RF CAD Model

Description

The Vishay Semiconductor Opto Division BPW20RF is a PIN diode that operates in the spectral range of 550nm to 1040nm.

  • Spectral Range: 550nm to 1040nm
  • Active Area: 7.5mm²
  • Viewing Angle: 100°
  • Response Time: Not specified
  • Dark Current: 2nA
  • Reverse Voltage: 10V DC
  • Package: Radial, lensed metal can with two leads
  • Mounting: Through hole
  • Applications: Sensors and transducers
  • Halogen-Free: Compliant
  • Popularity: Medium
  • Estimated EOL Date: 2024
