Same model may have multiple batches, images only for reference.

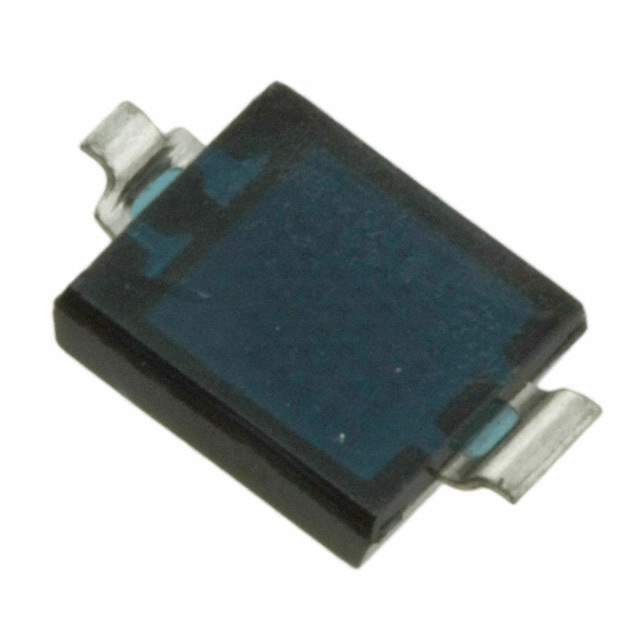

VBPW34FASR Real Image
Same model may have multiple batches, images only for reference.

VBPW34FASR

Part No VBPW34FASR
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE PIN HI SPEED HI SENS
Datasheet
VBPW34FASR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Wavelength 950nm
Spectral Range 780nm to 1050nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60V
Current - Dark (Typ) 2nA
Active Area 7.5mm²
Viewing Angle 130°
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Dimension 2-SMD, Z-Bend
Win Source Part Number 036222-VBPW34FASR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VBPW34FASR CAD Model

Description

The Vishay 036222-VBPW34FASR is a PIN diode with a response time of 100ns.

  • Response Time: 100ns
  • Maximum DC Reverse Voltage: 60V
  • Viewing Angle: 130 degrees
  • Operating Temperature Range: -40 to 100 degrees Celsius
  • Active Area: 7.5mm²
  • Category: Sensors and transducers
  • Packaging: Reel
  • Supply and Demand Status: Balance
