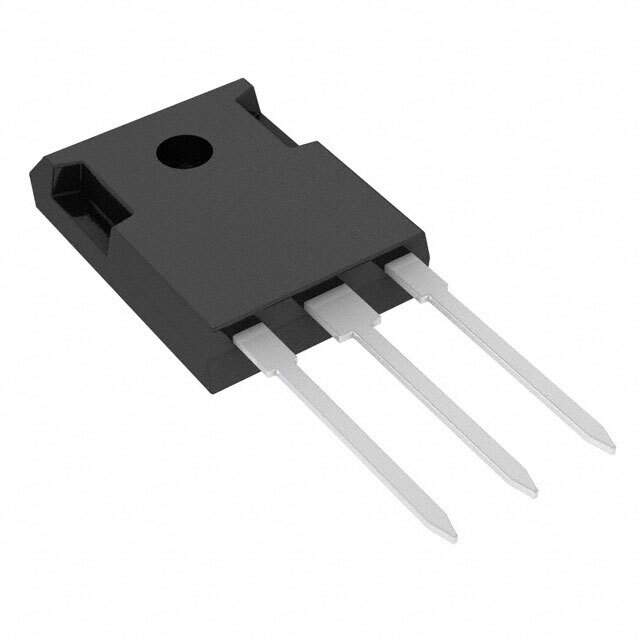

V80100P-E3/45 Real Image
Same model may have multiple batches, images only for reference.

V80100P-E3/45

Part No V80100P-E3/45
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 100V TO247 / Diode Array 1 Pair Common Cathode Schottky 100 V 40A Through Hole TO-3P-3, SC-65-3
Datasheet
V80100P-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Vishay General Semiconductor - Diodes Division
Series TMBS®
Package Tube
Product Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 780 mV @ 40 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 800 µA @ 100 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-3P-3, SC-65-3
Supplier Device Package TO-247AD (TO-3P)
Base Product Number V80100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names V80100P-E3/45-ND,V80100P-E3/45GI
Standard Package 750
Win Source Part Number 1216481-V80100P-E3/45
Ultra Librarian 3D Model Ultra Librarian V80100P-E3/45 CAD Model

Description

The V80100P-E3/45 is a Schottky diode designed for rectification applications and is manufactured by Vishay General Semiconductor - Diodes Division.

  • Reverse Voltage Rating: 100V (Max)
  • Forward Voltage Rating: 780mV @ 40A (Max)
  • Diode Configuration: 1 Pair Common Cathode
  • Average Rectified Current Rating: 40A
  • Mounting Type: Through Hole
  • Package Size: TO-3P-3, SC-65-3
