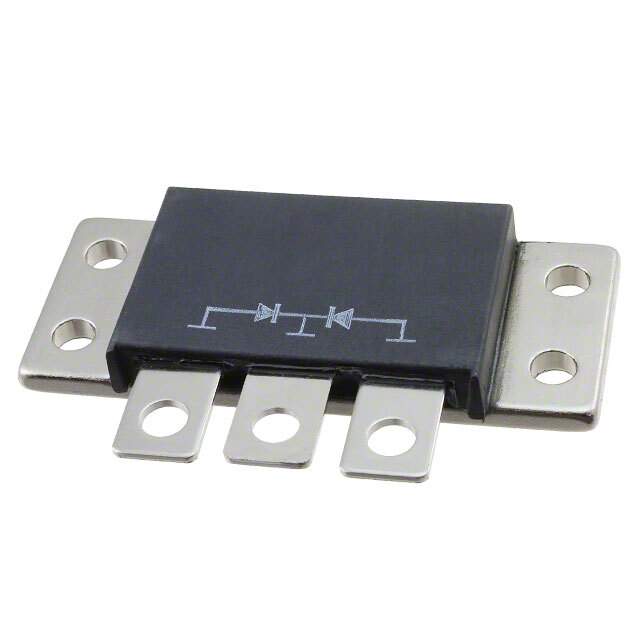

162CNQ030 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 80A
Voltage - Forward (Vf) (Max) @ If 530mV @ 80A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 30V
Operating Temperature - Junction -55°C to 150°C
Mounting Chassis Mount
Case / Package TO-249AA
Win Source Part Number 197308-162CNQ030
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 162CNQ030 CAD Model

Description

The 162CNQ030 is a high-efficiency rectifier that is perfect for power-sensitive applications. This component is designed to deliver consistent results in challenging environments.

Features and Benefits

  • High efficiency, minimizing power loss.
  • Temperature stability in varying conditions.
  • Compact design for diverse uses.

Applications and Projects

  • Power supplies.
  • Inverters.
  • Battery chargers.

Offering excellent efficiency, the 162CNQ030 is an ideal choice for projects that demand consistent and reliable power management solutions.
