Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photo Detectors - Remote Receiver
Mfr Vishay Semiconductor Opto Division
Series -
Package Tape & Reel
Product Status Active
Sensing Distance 40m
B.P.F. Center Frequency 38.0kHz
Voltage - Supply 2.5 V ~ 5.5 V
Current - Supply 700 µA
Orientation Side or Top View
Mounting Type Surface Mount
Temperature Range - Operating -25°C ~ 85°C (TA)
Base Product Number TSSP77038
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.49.9500
Win Source Part Number 1371613-TSSP77038TR
Ultra Librarian 3D Model Ultra Librarian TSSP77038TR CAD Model

Description

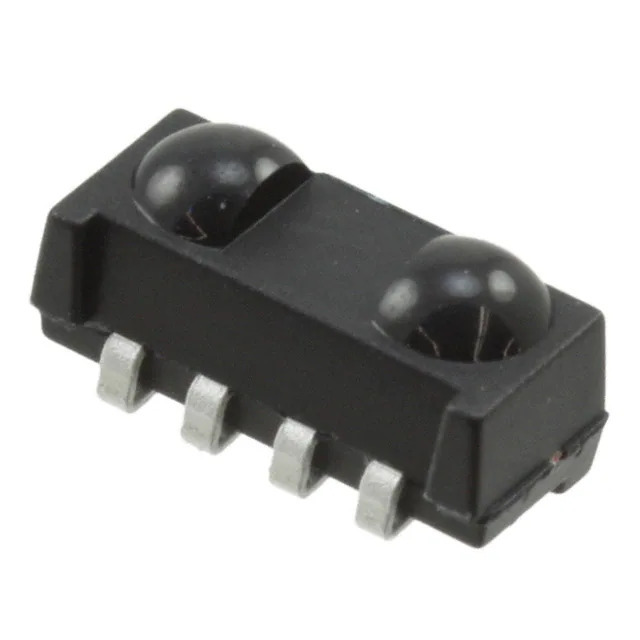

The Vishay Semiconductor Opto Division TSSP77038TR is a remote receiver photo detector. The product is the TSSP77038TR.

  • Supply Voltage: 2.5 V to 5.5 V
  • Current Consumption: 700 µA
  • Sensing Distance: 40m
  • Center Frequency: 38.0kHz
  • Bandpass Filter: Yes
  • Mounting Type: Surface Mount
  • Orientation: Side or Top View
  • Operating Temperature: -25°C to 85°C
