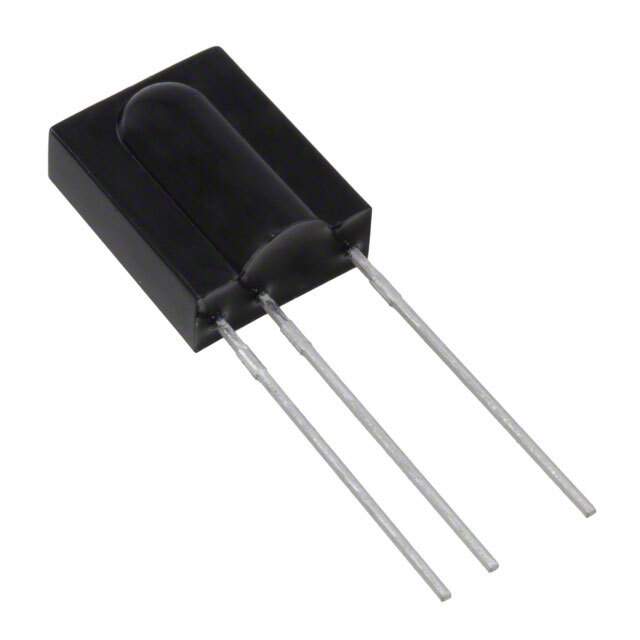

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photo Detectors - Remote Receiver
Mfr Vishay Semiconductor Opto Division
Package Tube
Sensing Distance 45m
B.P.F. Center Frequency 30.0kHz
Voltage - Supply 2.5 V ~ 5.5 V
Current - Supply 350 µA
Orientation Side View
Temperature Range - Operating -25°C ~ 85°C (TA)
Base Product Number TSOP31130
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1140896-TSOP31130
Ultra Librarian 3D Model Ultra Librarian TSOP31130 CAD Model

Description

The Vishay Semiconductor Opto Division electronic component with Win Source Part Number 1140896-TSOP31130 is a side view optical sensor photo detector remote receiver.

  • Sensing Distance: 45m
  • B.P.F. Center Frequency: 30.0kHz
  • Current Supply: 350 μA
  • Voltage Supply: 2.5 V ~ 5.5 V
  • Package: Tube
  • Standard Package: 1,000
  • Operating Temperature Range: -25°C ~ 85°C (TA)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
