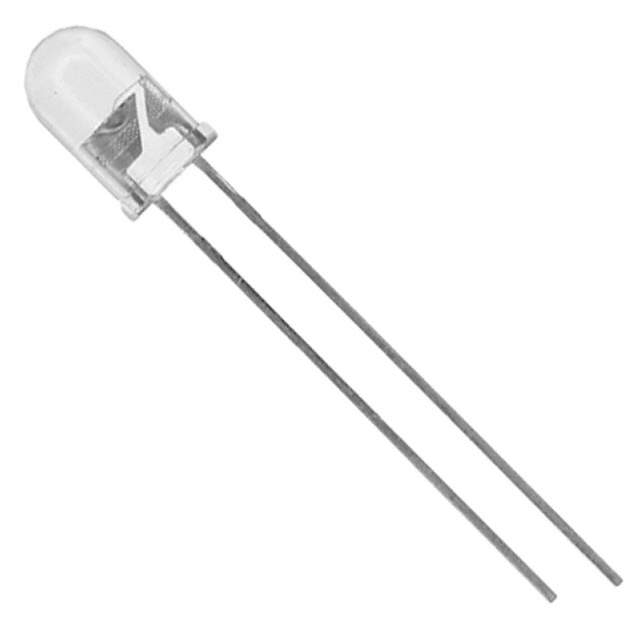

The TSHG6200 is a high-efficiency infrared (IR) emitting diode from Vishay Semiconductors. It is designed for a wide range of applications requiring IR transmission, offering a narrow emission angle and high radiant intensity. The device is housed in a standard T-1 3/4 (5 mm) package.

Applications:

• Remote control systems for TVs, DVD players, and other consumer electronics
• Light barriers and proximity sensors
• IR data transmission
• Security systems
• Industrial automation

Features:

• High radiant intensity
• Narrow emission angle of typically ±10°
• Wavelength of 940 nm
• Fast switching times
• Standard T-1 3/4 (5 mm) package
• Lead (Pb)-free device

Benefits:

• Extended range: The high radiant intensity and narrow emission angle allow for reliable operation over longer distances in remote control applications.
• Improved signal quality: The narrow emission angle minimizes interference from ambient light, resulting in a cleaner and more reliable signal.
• Energy efficiency: The device's high efficiency translates to lower power consumption in battery-powered devices.
• Compact design: The standard package allows for easy integration into a variety of applications with space constraints.
• Environmentally friendly: The lead-free construction complies with environmental regulations.

Additional Details:

The TSHG6200 operates at a forward voltage of typically 1.35 V and a forward current of 100 mA. It has a typical radiant intensity of 80 mW/sr. The device is suitable for pulsed operation, allowing for higher peak currents and increased range. It is important to note that exceeding the maximum ratings can damage the device. Consult the datasheet for detailed electrical and optical characteristics.

The TSHG6200 is a reliable and efficient IR emitting diode suitable for various applications where IR transmission is required. Its high radiant intensity, narrow emission angle, and fast switching times make it an excellent choice for remote control systems, light barriers, and other IR-based applications. Its robust design and lead-free construction ensure long-term reliability and compliance with environmental standards.
