Same model may have multiple batches, images only for reference.

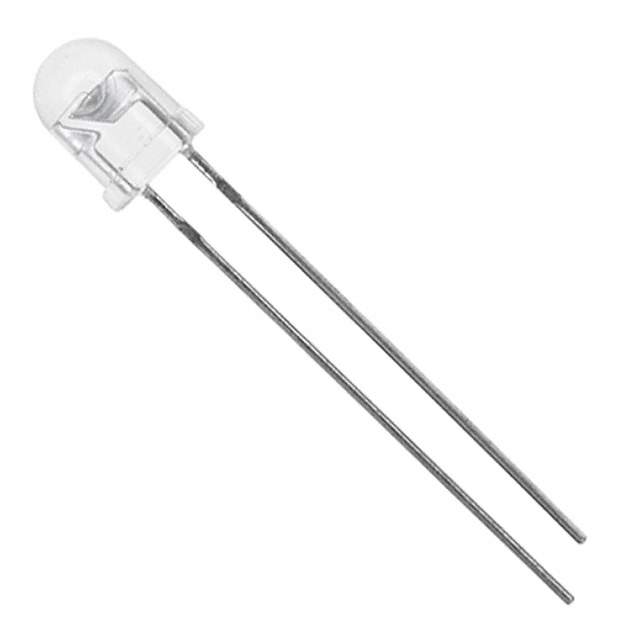

TSAL7600 Real Image
Same model may have multiple batches, images only for reference.

TSAL7600

Part No TSAL7600
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description Infrared Emitter 940nm 200mW/sr Circular Top Mount 2-Pin T-1 3/4 Bulk / EMITTER IR 940NM 100MA RADIAL
Datasheet
TSAL7600 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Type Infrared (IR)
Continuous forward current- Max 100mA
Radiant Intensity (Ie) Min @ If 15mW/sr @ 100mA
Wavelength 940nm
Forward Voltage 1.35V
Viewing Angle 60°
Orientation Top View
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Through Hole
Dimension Radial, 5mm Dia (T 1 3/4)
Win Source Part Number 382040-TSAL7600
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Communications & Networking
Family Name TSAL7600
Introduction Date December 17, 1999
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TSAL7600 CAD Model

Description

The TSAL7600 is an infrared (IR) emitting diode manufactured by Vishay.

  • Manufacturer: Vishay
  • Product Name: TSAL7600
  • Application: industrial, communications, and networking applications
  • Mounting: through-hole diode
  • Wavelength: 940nm
  • Viewing Angle: 60°
  • Radiant Intensity: 15mW/sr @ 100mA
  • Continuous Forward Current: 100mA
  • Introduction Date: December 17, 1999
  • Status: obsolete product
  • Alternative Parts: TSAL6400, ASDL-4263-C31, Q62703Q0516, and SFH 4511.
