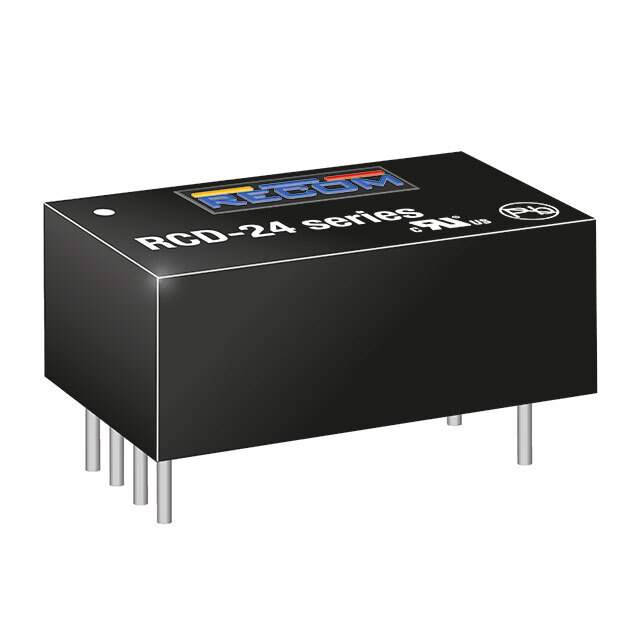

RCD-24-1.20 Real Image
Same model may have multiple batches, images only for reference.

RCD-24-1.20

Part No RCD-24-1.20
Manufacturer Recom Power
Catalog Board Mount LED Drivers
Description Constant Current LED Driver
Datasheet
RCD-24-1.20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Recom Power
Series LIGHTLINE RCD-24
Type Constant Current
Topology Buck
Number of Outputs 1
Input Voltage MIN 6V
Voltage Input MAX 36V
Voltage - Output 3 ~ 31 V
Current - Output (Maximum) 1.2A
Power (Watts) 37W
Dimming Analog, PWM
Features Remote On/Off, SCP
Operating Temperature Range -40°C ~ 65°C
Efficiency 96%
Mounting Style Through Hole
Package 6-DIP Module
Size 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm)
Packaging Tube
Approvals cULus
Weight 0.01 lb (4.54g)
Win Source Part Number 1242060-RCD-24-1.20
Manufacturer Homepage www.recom-international.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Lighting, LED Lighting
Family Name RCD-24
Introduction Date May 28, 2008
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian RCD-24-1.20 CAD Model

Description

The LIGHTLINE RCD-24 constant current DC-DC converter is designed for lighting and LED lighting applications.

  • Application: Lighting and LED Lighting
  • Package: 6-DIP module
  • Size: 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm)
  • Input Voltage Range: 6V to 36V
  • Output Voltage Range: 3 ~ 31 V
  • Maximum Current Output: 1.2A
  • Efficiency: 96%
  • Mounting Type: Through-hole
  • Operating Temperature Range: -40°C to 65°C
  • Product Number: RCD-24 (base product number)
  • Approval: cULus
