Same model may have multiple batches, images only for reference.

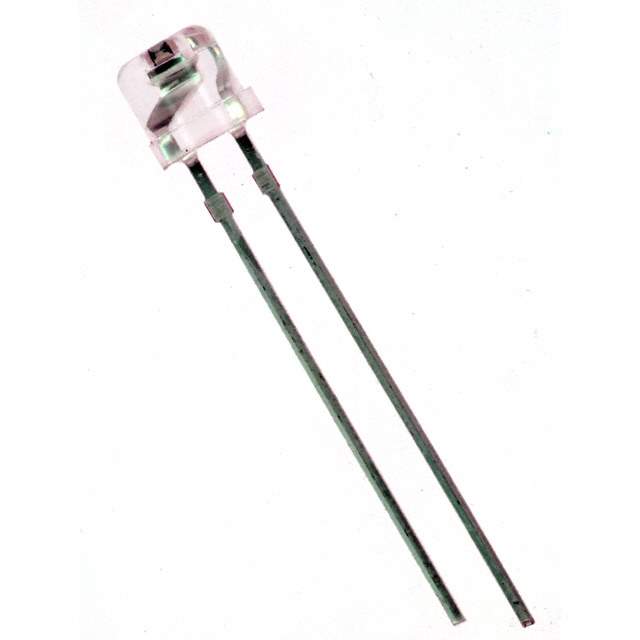

TEPT5700 Real Image
Same model may have multiple batches, images only for reference.

TEPT5700

Part No TEPT5700
Manufacturer Vishay
Catalog Optical Sensors - Phototransistors
Description AMBIENT LIGHT SENSOR 5MM 570NM
Datasheet
TEPT5700 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 6V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 50nA
Wavelength 570nm
Viewing Angle 100°
Maximum Power Dissipation 100mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -40°C to 85°C (TA)
Dimension Radial
Win Source Part Number 212802-TEPT5700
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TEPT5700 CAD Model

Description

The Vishay TEPT5700 is a photo transistor designed for use in a variety of sensing applications.

  • Viewing Angle: 100°
  • Wavelength: 570nm
  • Maximum Current Collector: 20mA
  • Maximum Power Dissipation: 100mW
  • Package: radial
  • Installation: through-hole
  • Product Status: active
  • Supply and demand status: limited
