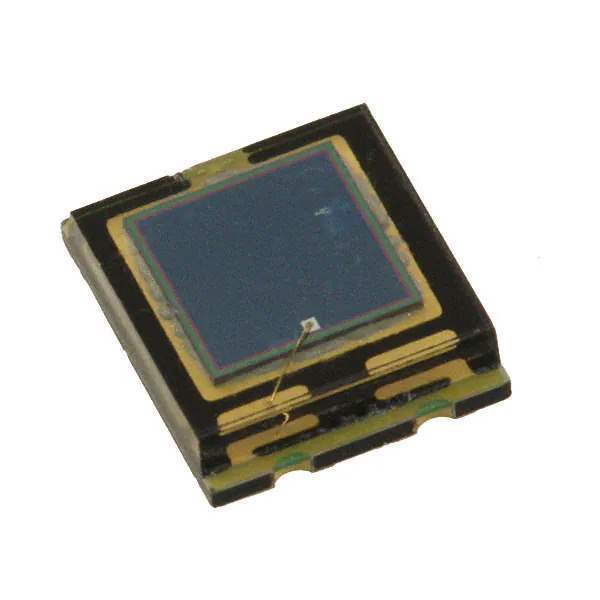

TEMD5010X01 Real Image
Same model may have multiple batches, images only for reference.

TEMD5010X01

Part No TEMD5010X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 350 TO 1120 NM / Photodiode 940nm 100ns 130°
Datasheet
TEMD5010X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Vishay
Package Tape & Reel
Product Status Active
Wavelength 940nm
Spectral Range 430nm ~ 1100nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Dark (Typ) 2nA
Active Area 7.5mm²
Viewing Angle 130°
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Base Product Number TEMD5010
Standard Package 1,500 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 899483-TEMD5010X01
Ultra Librarian 3D Model Ultra Librarian TEMD5010X01 CAD Model

Description

The TEMD5010X01 is a surface mount photodiode designed for use in optical sensing applications.

  • Response Time: It features a response time of 100ns, allowing for fast detection of light signals.
  • Operating Temperature: The device operates over a wide temperature range of -40°C to 100°C, making it suitable for use in both indoor and outdoor applications.
  • Viewing Angle: It has a viewing angle of 130°, providing a wide field of view.
  • Type: The TEMD5010X01 is a PIN diode, which offers high sensitivity and low dark current.
  • Maximum DC Reverse Voltage: It has a maximum DC reverse voltage of 60V, allowing for reliable operation in high voltage applications.
  • Status: The TEMD5010X01 is an active product and is unaffected by REACH regulations.
  • Manufacturer: It is manufactured by Vishay, a trusted brand in the electronic components industry.
