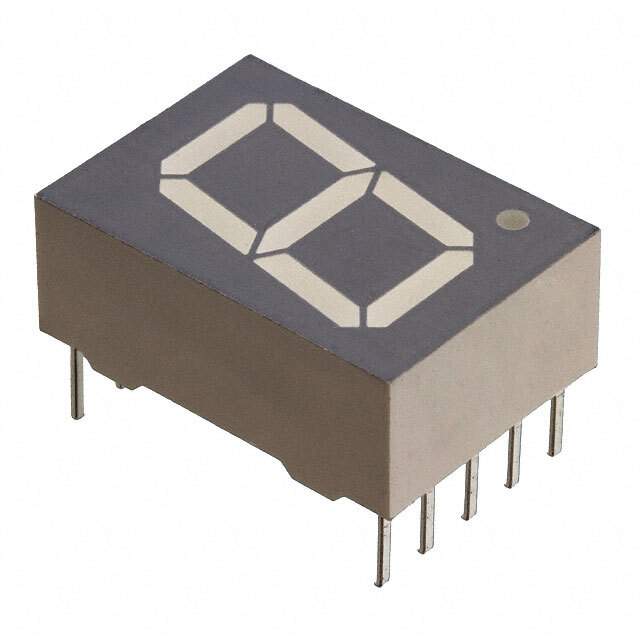

TDSR1350 Real Image
Same model may have multiple batches, images only for reference.

TDSR1350

Part No TDSR1350
Manufacturer Vishay
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.51" SGL RED 10DIP
Datasheet
TDSR1350 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 12 Weeks
Features Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.8V 1mA 0.689" H x 0.482" W x 0.252" D (17.50mm x 12.25mm x 6.40mm) 10-DIP (0.600", 15.24mm)
Manufacturer Vishay
Package Bulk
Package 10-DIP (0.600", 15.24mm)
Family Name TDSR1350
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Quantity per package 400
Popularity High
Supply and Demand Status Balance
Win Source Part Number 899448-TDSR1350
Ultra Librarian 3D Model Ultra Librarian TDSR1350 CAD Model

Description

The Vishay TDSR1350 is a display module for LED character and numeric displays.

  • Type: It is a single character common anode display with a red 7-segment 1
  • Operating Voltage: and an operating voltage of 1.8V.
  • Package Type: The display module has a package type of 10-DIP (0.600", 15.24mm)
  • Size: and a size of 0.689" H x 0.482" W x 0.252" D (17.50mm x 12.25mm x 6.40mm).
  • Quantity per Package: The quantity per package is 400
  • Package Type: and the package type is bulk.
  • ECCN: The ECCN for this product is EAR99
  • MSL Level: and the MSL level is 1 (Unlimited).
  • REACH: It is unaffected by REACH
  • HTSUS Code: and has an HTSUS code of 8541.40.2000.
  • Supply and Demand Status: The supply and demand status is balanced.
