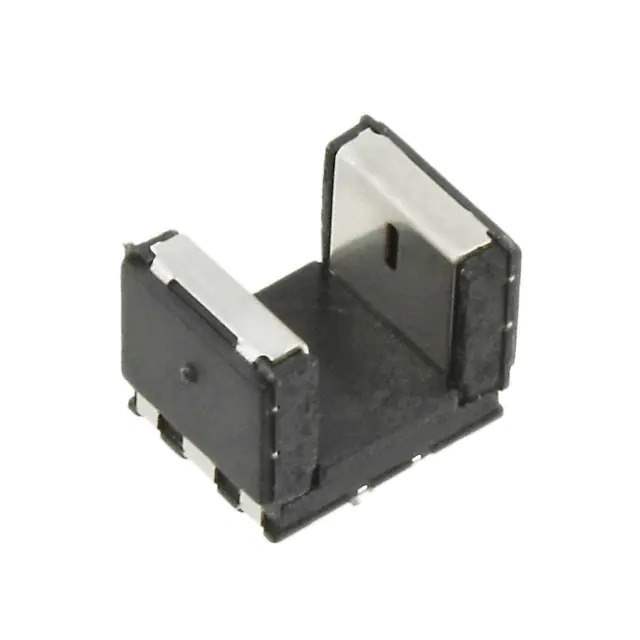

TCPT1300X01 Real Image
Same model may have multiple batches, images only for reference.

TCPT1300X01

Part No TCPT1300X01
Manufacturer Vishay
Catalog Optical Sensors
Description SENSOR OPT SLOT PHOTOTRANS 6SMD
Datasheet
TCPT1300X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr Vishay
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Sensing Distance 0.118" (3mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 25 mA
Current - Collector (Ic) (Max) 20 mA
Voltage - Collector Emitter Breakdown (Max) 20 V
Response Time 20µs, 30µs
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 6-SMD
Type Unamplified
Base Product Number TCPT1300
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Win Source Part Number 846529-TCPT1300X01
Ultra Librarian 3D Model Ultra Librarian TCPT1300X01 CAD Model

Description

The TCPT1300X01 is an unamplified photointerrupter with a through-beam sensing method.

  • Application: Automotive
  • Standard: AEC-Q101
  • Response Time: 20μs or 30μs
  • Voltage Collector-Emitter Breakdown: 20V
  • Maximum Collector Current: 20mA
  • Package: 6-SMD
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 105°C
  • Standard Package: 2,000 pieces
