Same model may have multiple batches, images only for reference.

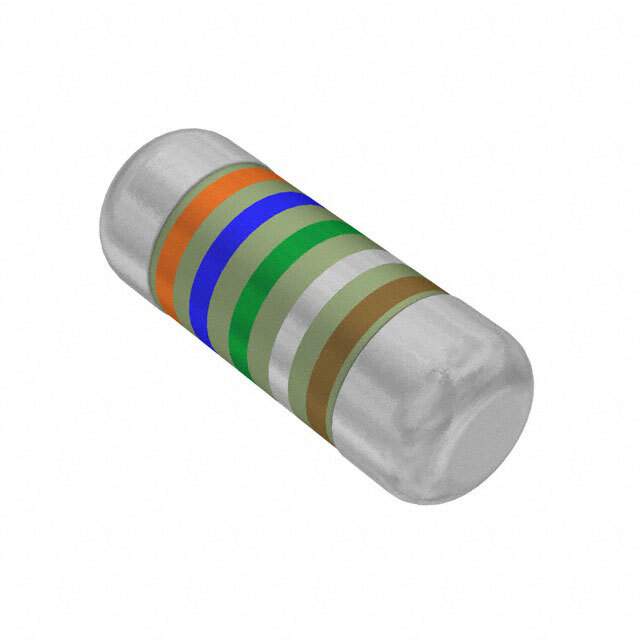

SMM02070C3658FBP00 Real Image
Same model may have multiple batches, images only for reference.

SMM02070C3658FBP00

Part No SMM02070C3658FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 3.65 OHM 1% 1W MELF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay Beyschlag
Packaging Tape and Reel
Resistance 3.65 Ohms
Tolerance ±1%
Power (W) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package MELF, 0207
Supplier Device Package MELF
Parts Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Win Source Part Number 727051-SMM02070C3658FBP00
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMM02070C3658FBP00 CAD Model

Description

The Vishay Beyschlag SMM02070C3658FBP00 resistor is a thin film composition with a resistance of 3.65 ohms and a power rating of 1W.

  • Resistance: 3.65 ohms
  • Power Rating: 1W
  • Manufacturer Package: MELF, 0207
  • Tolerance: ±1%
  • Terminations: 2
  • Applications: Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
  • Temperature Coefficient: ±50ppm/°C
  • REACH: Unaffected
  • Temperature Range: -55°C to 155°C
  • Packaging: Tape and Reel
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 1,500
