The HMC442LC3BTR from Analog Devices Inc. is a high-performance, passive double-balanced mixer that offers a blend of frequency range, isolation, and conversion loss. It is designed to meet the needs of RF and microwave communication systems, where it can be used for up- and down-conversion of signals within a wide range of applications including satellite communications, test equipment, and military systems.

Key Features

• Frequency Range: The mixer operates over a broad frequency range, covering 6 GHz to 20 GHz on the RF and LO ports, with an IF range from DC to 3 GHz. This allows for versatile use in various high-frequency applications.
• Conversion Loss: With a typical conversion loss of 9 dB, the HMC442LC3BTR ensures efficient signal conversion, which is critical for maintaining signal integrity in communication systems.
• LO/RF Isolation: The device provides excellent LO to RF isolation of 45 dB, minimizing leakage between the local oscillator and the RF signal, thus reducing potential interference.
• LO Drive Level: The mixer operates with an LO drive level from +13 dBm to +20 dBm, providing flexibility in the choice of local oscillator power levels.

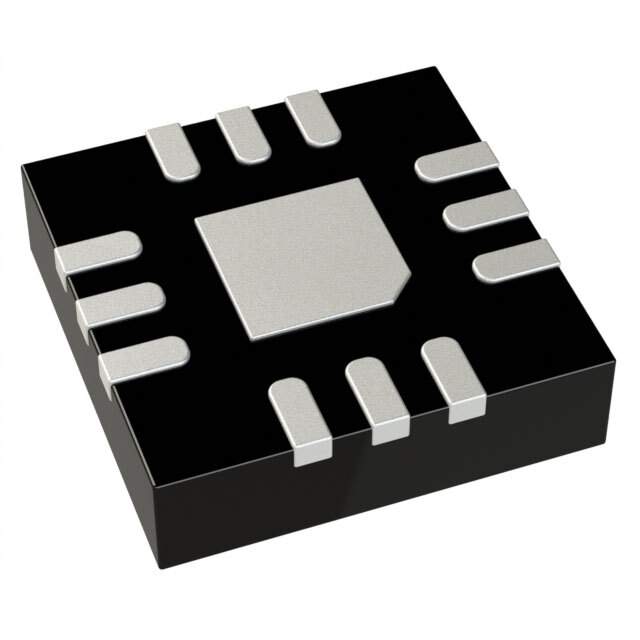

• Package: Housed in a compact 3x3 mm ceramic QFN package, the HMC442LC3BTR is suitable for space-constrained applications while still delivering robust performance.

Applications

• Point-to-Point and Point-to-Multipoint Radios
• Military & Space
• Test Equipment & Sensors
• Satellite Communications

The HMC442LC3BTR is a testament to Analog Devices Inc.'s commitment to providing advanced solutions for complex RF and microwave signal processing. Its high level of integration, coupled with exceptional performance specifications, makes it an ideal choice for designers looking to optimize their systems for both performance and size.
