Same model may have multiple batches, images only for reference.

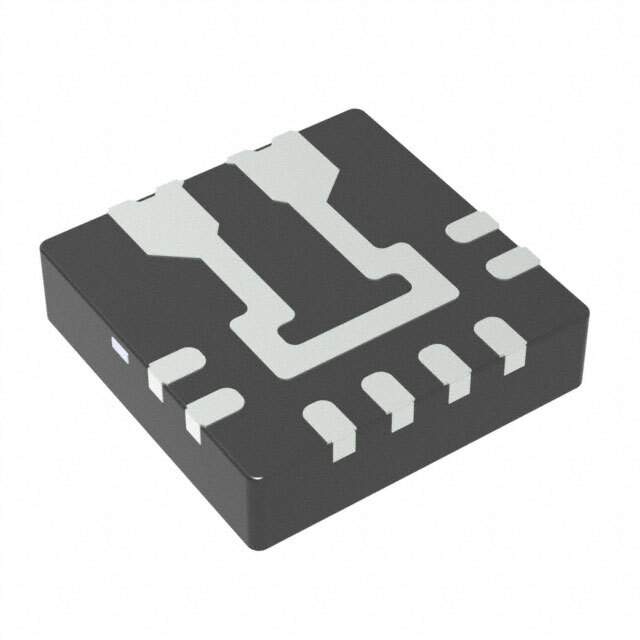

ACS70331EESATR-2P5B3 Real Image
Same model may have multiple batches, images only for reference.

ACS70331EESATR-2P5B3

Part No ACS70331EESATR-2P5B3
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description HIGH SENSITIVITY, 1 MHZ, GMR-BAS / Current Sensor ±2.5A 1 Channel Hall Effect, Open Loop Bidirectional 12-PowerWFQFN
Datasheet
ACS70331EESATR-2P5B3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Allegro MicroSystems
Series ACS70331
Package Tape & Reel
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing ±2.5A
Number of Channels 1
Output Voltage
Sensitivity 400mV/A
Frequency DC ~ 1MHz
Linearity ±0.2%
Accuracy ±2%
Voltage - Supply 3V ~ 4.5V
Response Time 535ns
Current - Supply (Max) 6mA
Temperature Range - Operating -40°C ~ 85°C
Polarization Bidirectional
Mounting SMD (SMT)
Package / Case 12-PowerWFQFN
Supplier Device Package 12-QFN (3x3)
Base Product Number ACS703
Other Names 620-1889-6,620-1889-1,620-1889-2
Standard Package 1,500
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235504-ACS70331EESATR-2P5B3
Ultra Librarian 3D Model Ultra Librarian ACS70331EESATR-2P5B3 CAD Model

Description

The Allegro MicroSystems ACS70331EESATR-2P5B3 is a hall effect current sensor designed for measuring AC/DC current.

  • Polarization: Bidirectional
  • Sensitivity: 400mV/A
  • Current Sensing: ±2.5A
  • Linearity: ±0.2%
  • Accuracy: ±2%
  • Response Time: 535ns
  • Frequency Range: DC to 1MHz
  • Voltage Supply: 3V to 4.5V
  • Current Supply: 6mA (Maximum)
  • Package: 12-QFN (3x3)
