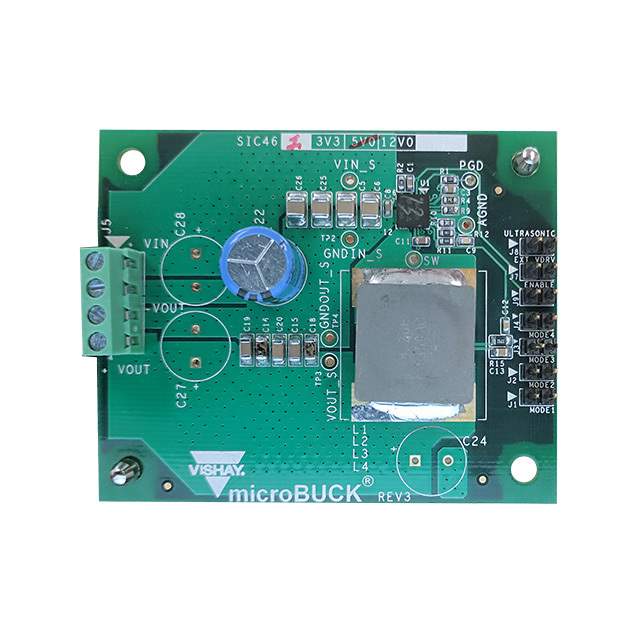

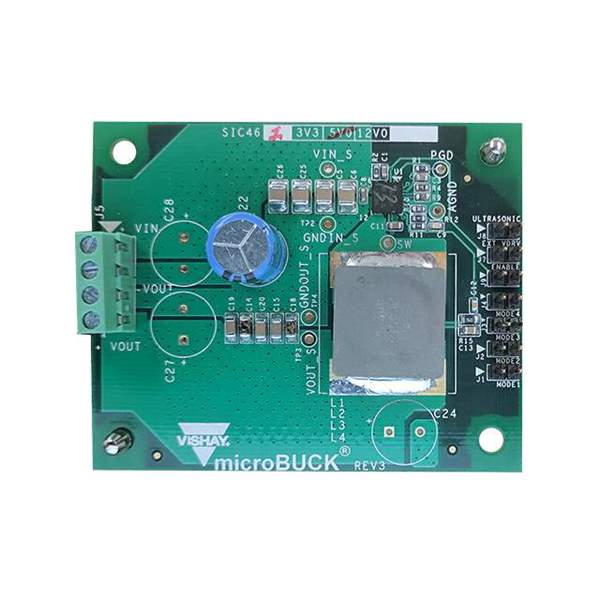

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Vishay Siliconix
Package Box
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Current - Output 2A
Voltage - Input 4.5V ~ 60V
Regulator Topology Buck
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part SIC464
Base Product Number SIC464
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1284148-SIC464EVB
Ultra Librarian 3D Model Ultra Librarian SIC464EVB CAD Model

Description

The Vishay Siliconix SIC464EVB evaluation board is designed for use with the SIC464 buck regulator.

  • Board Type: fully populated
  • Voltage Input Range: 4.5V to 60V
  • Current Output: 2A
  • Regulator Topology: buck
  • Main Purpose: DC/DC, step down
  • Supplied with: the SIC464 IC
  • Category: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
