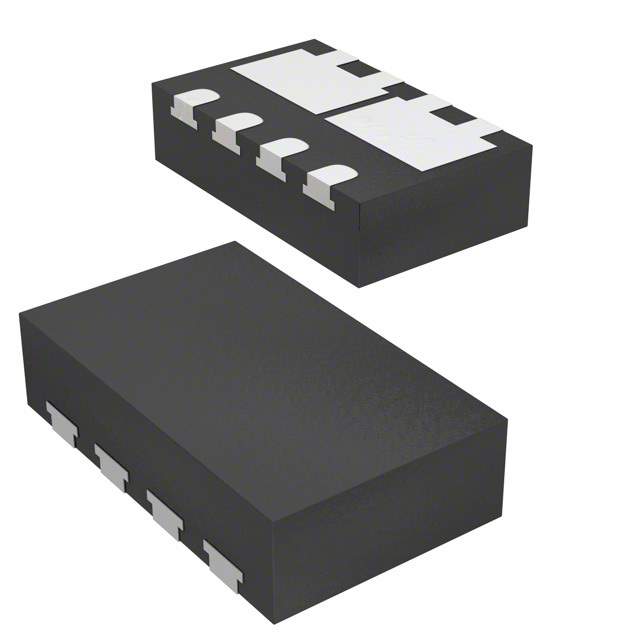

SI5947DU-T1-GE3

Name: SI5947DU-T1-GE3
Brand: Vishay
SKU: 802296
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SI5947DU-T1-GE3
Manufacturer	Vishay
Catalog	FETs - Arrays
Description	MOSFET 2P-CH 20V 6A PPAK CHIPFET
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Vishay Siliconix
Packaging	Reel
Part Status	Obsolete (End Of Life)
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) at 25°C	6A
Rds On (Maximum) at Id, Vgs	58mOhm at 3.6A, 4.5V
Vgs(th) (Maximum) at Id	1.5V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	17nC at 10V
Input Capacitance (Ciss) (Maximum) at Vds	480pF at 10V
Power - Max	10.4W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	SMD
Manufacturer Package	PowerPAK ChipFET Dual
Supplier Device Package	PowerPAK ChipFet Dual
Part Number Series	SI5947
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	802296-SI5947DU-T1-GE3
Ultra Librarian 3D Model	Ultra Librarian SI5947DU-T1-GE3 CAD Model

Description

The SI5947DU-T1-GE3 is a dual P-channel logic level gate FET manufactured by Vishay Siliconix.

FET Type: Dual P-Channel
Mounting Type: Surface Mount
Package: PowerPAK Chipfet Dual
Obsolete: Yes (end of life)
Drain to Source Voltage: 20V
Power: 10.4W
Packaging: Reel
Manufacturer Pack Quantity: 3,000
Operating Temperature Range: -55°C ~ 150°C
Rds On (Maximum) @ Id, Vgs: 58mOhm @ 3.6A, 4.5V
Gate Charge (Qg) (Maximum) @ Vgs: 17nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds: 480pF @ 10V
Current Continuous Drain (Id) @ 25°C: 6A
Vgs(th) (Maximum) @ Id: 1.5V @ 250μA
Part Number Series: SI5947
