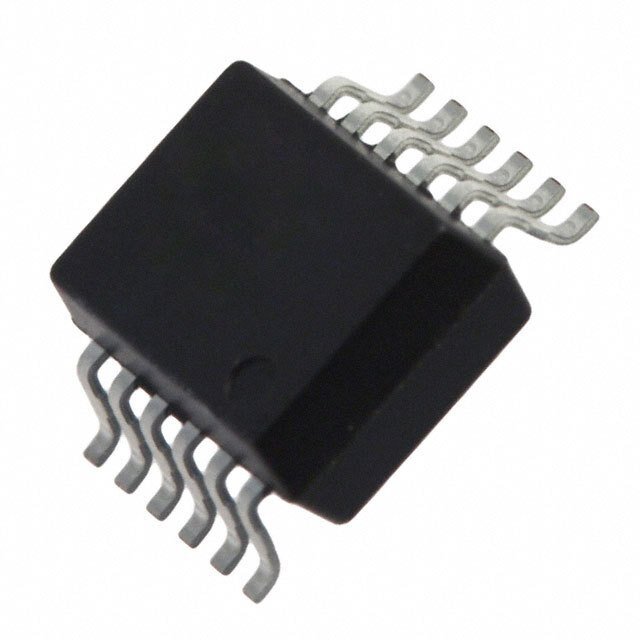

PS2841-4B-F3-AX CEL
Same model may have multiple batches, images only for reference.

PS2841-4B-F3-AX

Part No PS2841-4B-F3-AX
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 1.5KV 4CH TRANS 12BSOP / Optocoupler DC-IN 4-CH Transistor DC-OUT 12-Pin Ultra SSOP T/R
Datasheet
PS2841-4B-F3-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Series NEPOC
Packaging Reel package
Number of Channels 4
Voltage - Isolation 1500Vrms
Current Transfer Ratio (Minimum) 100% @ 1mA
Current Transfer Ratio (Maximum) 400% @ 1mA
Rise / Fall Time (Typ) 20μs, 110μs
Input Type DC
Output Type Transistor
Output Voltage MAX 70V
Output Current per Channel 20mA
Voltage - Forward (Vf) (Typ) 1.1V
Current - DC Forward (If) (Maximum) 20mA
Vce Saturation (Maximum) 300mV
Operating Temperature Range -40°C ~ 100°C
Mounting SMD
Package 12-BSOP (0.173", 4.40mm Width)
Manufacturer Package 12-SSOP
Win Source Part Number 792525-PS2841-4B-F3-AX
Popularity Medium
Supply and Demand Status Limited
Family Name PS2841-4B-F3-AX
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian PS2841-4B-F3-AX CAD Model

Description

The CEL PS2841-4B-F3-AX is a 4-channel DC input transistor output optocoupler.

  • Package: 12-BSOP
  • Isolation Voltage: 1500Vrms
  • Maximum Output Voltage: 70V
  • Output Current per Channel: 20mA
  • Current Transfer Ratio: 100% @ 1mA, 400% @ 1mA
  • Vce Saturation: 300mV
  • Rise/Fall Time: 20μs, 110μs
