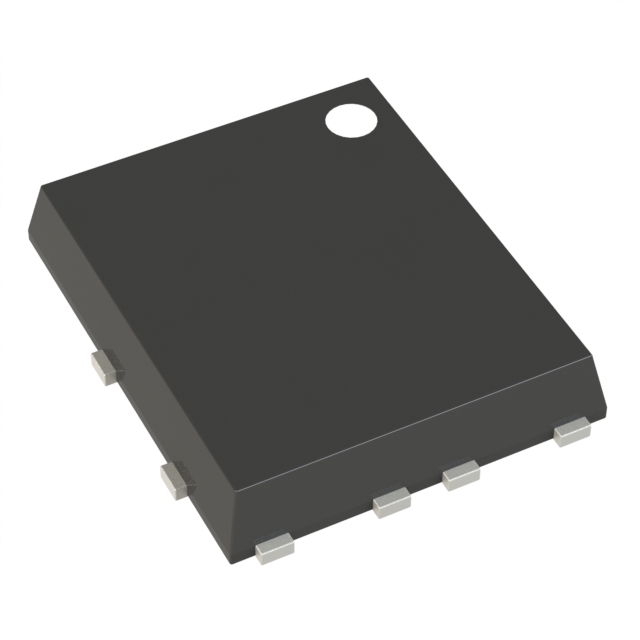

Same model may have multiple batches, images only for reference.
NVMFD5C478NT1G MICROSS/On Semiconductor – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

NVMFD5C478NT1G

Part No NVMFD5C478NT1G
Manufacturer MICROSS/On Semiconductor
Catalog FETs - Arrays
Description MOSFET 2N-CH 40V 9.8A 8DFN
Datasheet
NVMFD5C478NT1G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual)
Drain to Source Voltage (Vdss) 40V
Current - Continuous Drain (Id) @ 25°C 9.8A (Ta), 27A (Tc)
Rds On (Max) @ Id, Vgs 17mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id 3.5V @ 20µA
Gate Charge (Qg) (Max) @ Vgs 6.3nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 325pF @ 25V
Power - Max 3.1W (Ta), 23W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Package / Case 8-PowerTDFN
Supplier Device Package 8-DFN (5x6) Dual Flag (SO8FL-Dual)
Ultra Librarian 3D Model Ultra Librarian NVMFD5C478NT1G CAD Model
