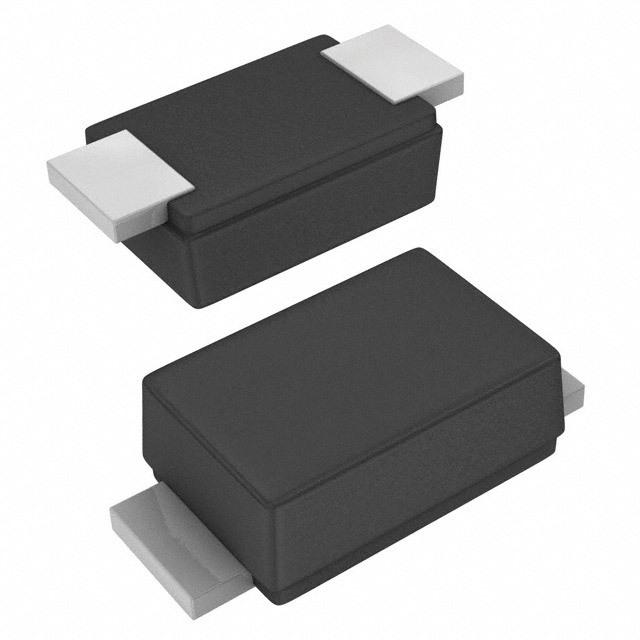

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400V
Current - Average Rectified (Io) 700mA
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1800ns
Current - Reverse Leakage @ Vr 10μA @ 200V
Capacitance @ Vr, F 4pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-219AB (SMF)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 185137-S07G
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian S07G CAD Model

Description

This Vishay electronic component is a standard SMD (SMT) diode with a maximum DC reverse voltage of 400V and an average rectified current of 700mA.

  • Mounting: SMD (SMT)
  • Maximum DC Reverse Voltage: 400V
  • Average Rectified Current: 700mA
  • Voltage Forward @ 1A: 1.1V
  • Reverse Recovery Time: 1800ns
  • Current Reverse Leakage @ 200V: 10μA
  • Capacitance @ 4V, 1MHz: 4pF
  • Operating Temperature Range: from -55°C to 150°C
  • Supply and Demand Status: sufficient
