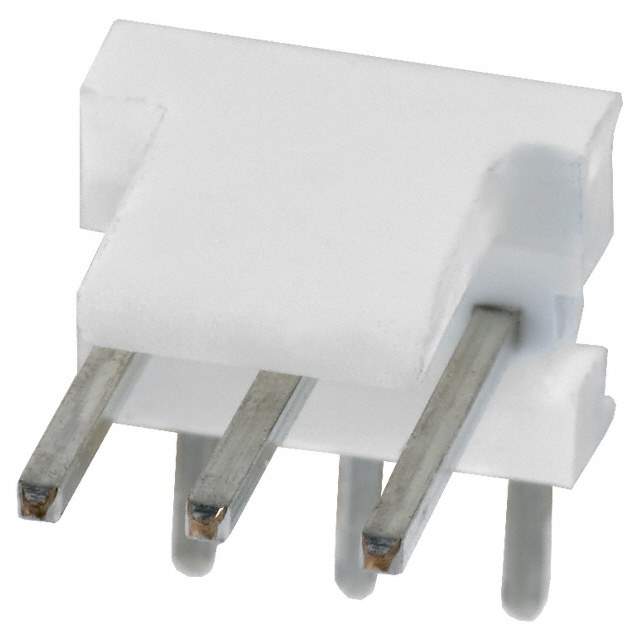

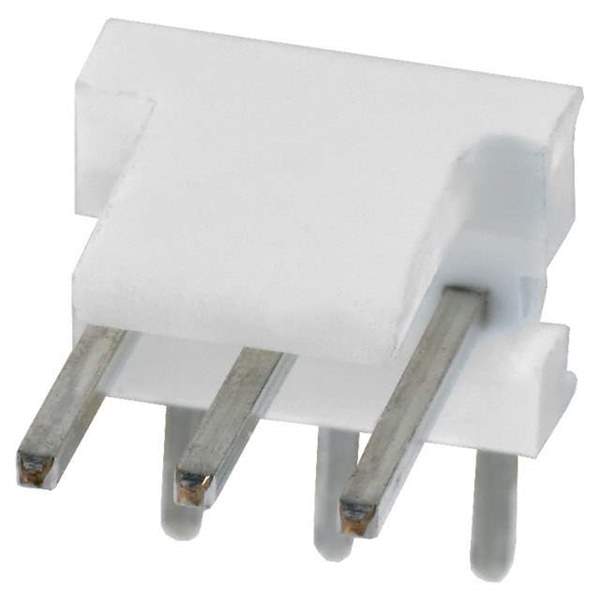

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole, Right Angle
Termination Solder
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Insulation Height 0.225" (5.72mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose
Base Product Number 640455
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 6404553,2266-640455-3,A19451,-640455-3-SI
Standard Package 1
Win Source Part Number 1332715-640455-3
Ultra Librarian 3D Model Ultra Librarian 640455-3 CAD Model

Description

TE Connectivity AMP Connectors 1332715-640455-3 is a 3-position male pin header connector with a solder termination.

  • Number of Positions: 3
  • Termination Type: Solder
  • Connector Style: Board-to-Cable/Wire
  • Pitch: 0.100” (2.54mm)
  • Shrouding: Shrouded-1 Wall
  • Contact Material: Copper Alloy
  • Contact Finish (Mating): Tin
  • Insulation Material: Natural
  • Insulation Height: 0.225” (5.72mm)
  • RoHS3 Compliant: Yes
  • Standard Package: 1
  • Application: General-Purpose
