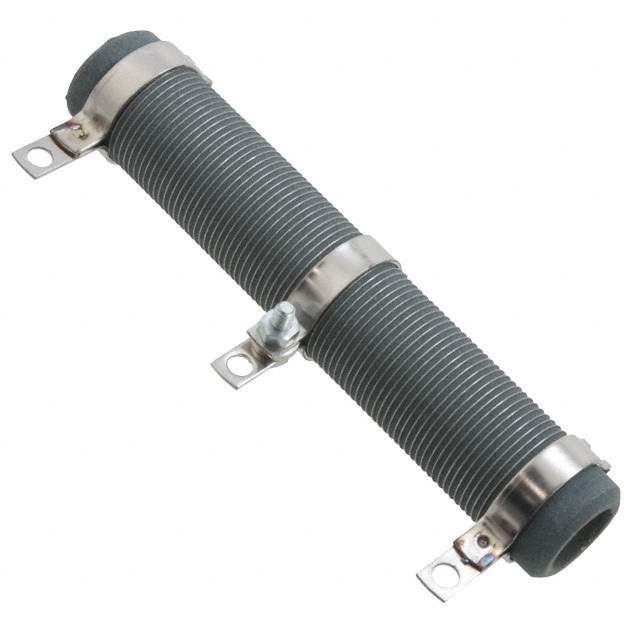

RSSD20117A22R0JB15 Real Image
Same model may have multiple batches, images only for reference.

RSSD20117A22R0JB15

Part No RSSD20117A22R0JB15
Manufacturer Vishay
Catalog Adjustable Power Resistor
Description RESISTOR 22 OHM 100W 5% WW
Datasheet
RSSD20117A22R0JB15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Vishay
Packaging Bulk
Status Active
Resistance (Ohms) 22
Power (Watts) 100W
Tolerance ±5%
Adjustment Type Slide
Diameter 0.866" OD, 0.496" ID (22.00mm x 12.60mm)
Length 4.606" (117.00mm)
Mounting Chassis Mount
Termination Solder Lug
Dimension Radial, 3 Lead, Tubular
Win Source Part Number 1102237-RSSD20117A22R0JB15
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RSSD20117A22R0JB15 CAD Model

Description

The Vishay 1102237-RSSD20117A22R0JB15 potentiometer is a chassis mount device with a slide adjustment type. Vishay 1102237-RSSD20117A22R0JB15

  • Mount: Chassis Mount
  • Adjustment: Slide
  • Tolerance: ±5%
  • Power Rating: 100W
  • Resistance: 22 ohms
  • Diameter: 0.866" OD, 0.496" ID (22.00mm x 12.60mm)
  • Length: 4.606" (117.00mm)
  • Lead Style: Radial, 3 Lead, Tubular Dimension
  • Packaging: Bulk
  • Supply and Demand: Balanced
