Same model may have multiple batches, images only for reference.

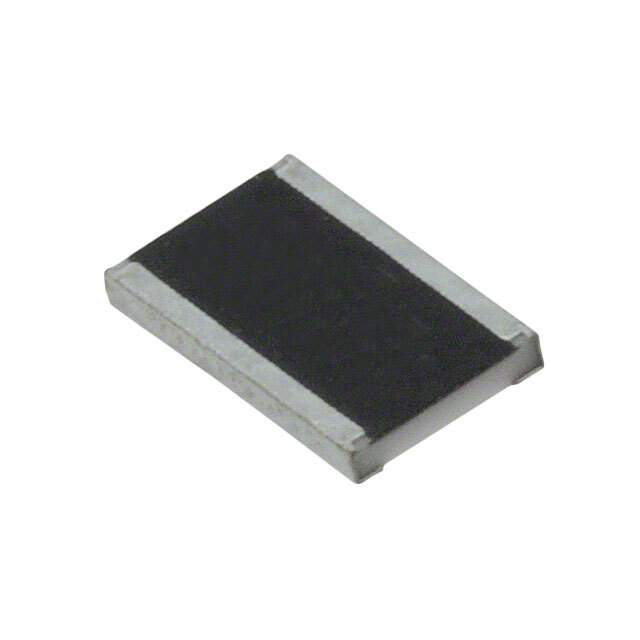

RCL12182R20JNEK Real Image
Same model may have multiple batches, images only for reference.

RCL12182R20JNEK

Part No RCL12182R20JNEK
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 2.2 OHM 1W 1812 WIDE
Datasheet
RCL12182R20JNEK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 17 Weeks
Features 2.2 Ohms ±5% 1W Chip Resistor Wide 1812 (4532 Metric), 1218 Automotive AEC-Q200 Thick Film
Manufacturer Vishay
Series RCL
Package Reel - TR
Operating Temperature Range -55°C ~ 155°C
Package Wide 1812 (4532 Metric), 1218
Case / Package 1218
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number RCL2.2BTR, CRCW12182R20JNEK-ND, RCL2.2BDKR, CRCW12182R20JNEK, RCL2.2BCT
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 931882-RCL12182R20JNEK
Ultra Librarian 3D Model Ultra Librarian RCL12182R20JNEK CAD Model

Description

The Vishay RCL series is a chip resistor with a resistance of 2.2 Ohms and a power rating of 1W.

  • Resistance: 2.2 Ohms
  • Power Rating: 1W
  • Package: 1812 (4532 Metric), 1218
  • Operating Temperature Range: -55°C to 155°C
  • Applications: Automotive circuits, power supplies, and industrial equipment
  • Packaging: Reel - TR
  • Quantity per Package: 4000 pieces
  • Estimated Production Lead Time: 17 weeks
