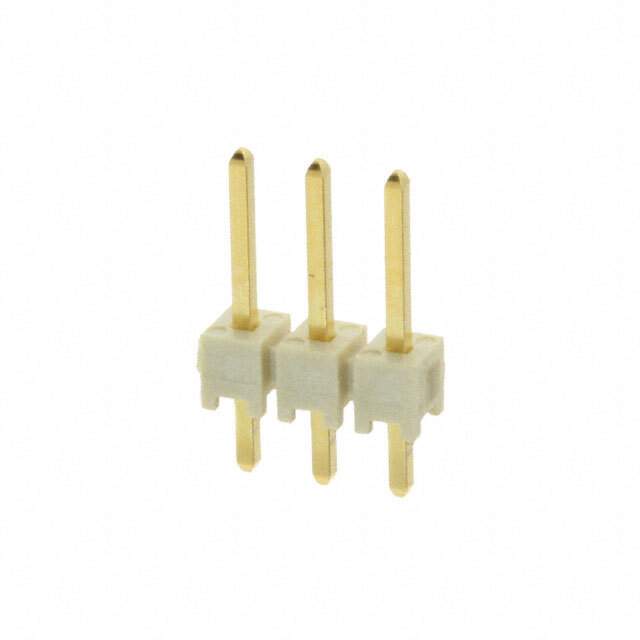

The Samtec Inc. HTSW-103-07-G-S header connector is a board-to-board or cable connector with a 2.54mm mating pitch.

• Positions: three
• Contacts: male pin
• Shrouded: unshrouded
• Insulation Material: liquid crystal polymer (LCP)
• Flammability Rating: UL94 V-0
• Contact Finish: gold with a thickness of 10μin (0.25μm) for mating and 3μin (0.08μm) for post
• Temperature Range: -55°C to 125°C
• Overall Contact Length: 0.430" (10.92mm)
• Post Contact Length: 0.100" (2.54mm)
• Mating Contact Length: 0.230" (5.84mm)
• Use: suitable for use in industrial applications
